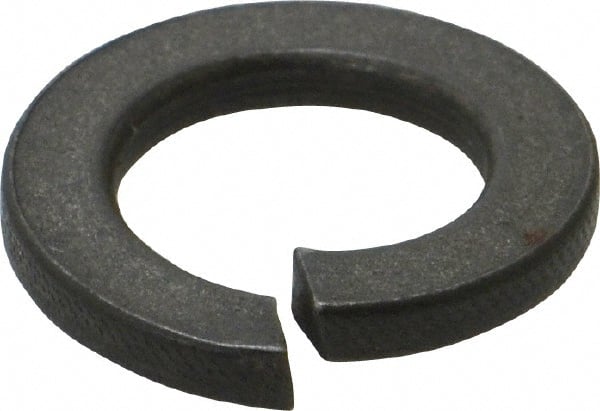

Value Collection - M14, 14.2mm ID, 3mm Thick Split Lock Washer - Steel, Uncoated, 14.2mm Min ID, 14.7mm Max ID, 24.1mm Max OD
Item #: 67497164
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Split lock washers have a split at one point along their outer diameter, which creates compression and tension to lock the nut in place. Split lock washers are used in high-vibration applications.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
| Product Specifications | |
|---|---|
| System of Measurement | Metric |
| Type | Split Lock Washer |
| Screw Size | M14 |
| Material | Steel |
| Finish/Coating | Uncoated |
| Inside Diameter (mm) | 14.20 |
| Thickness (mm) | 3.00 |
| Minimum Inside Diameter (mm) | 14.20 |
| Maximum Inside Diameter (mm) | 14.70 |
| Maximum Outside Diameter (mm) | 24.10 |
| Military Specification | Does Not Meet Military Specifications |
| Fastener Standard | DIN 127B |
