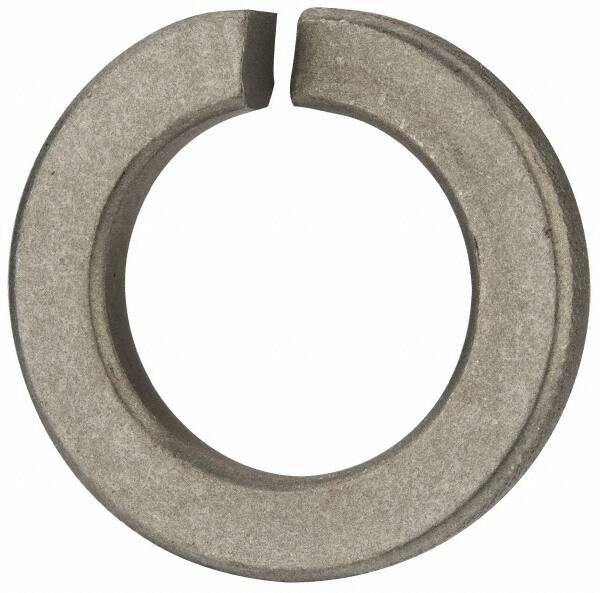

Value Collection - 1-1/4", 1.254" ID, 0.312" Thick Split Lock Washer - Steel, Zinc-Plated Finish, 1.254" Min ID, 1.28" Max ID, 2.036" Min OD, 2.045" Max OD
Item #: 67497404
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Split lock washers have a split at one point along their outer diameter, which creates compression and tension to lock the nut in place. Split lock washers are used in high-vibration applications.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
| Product Specifications | |
|---|---|
| System of Measurement | Inch |
| Type | Split Lock Washer |
| Screw Size | 1-1/4 |
| Material | Steel |
| Finish/Coating | Zinc-Plated |
| Inside Diameter (Decimal Inch) | 1.2540 |
| Thickness (Decimal Inch) | 0.3120 |
| Minimum Inside Diameter (Decimal Inch) | 1.2540 |
| Maximum Inside Diameter (Decimal Inch) | 1.2800 |
| Minimum Outside Diameter (Decimal Inch) | 2.0360 |
| Maximum Outside Diameter (Decimal Inch) | 2.0450 |
| Military Specification | Does Not Meet Military Specifications |
