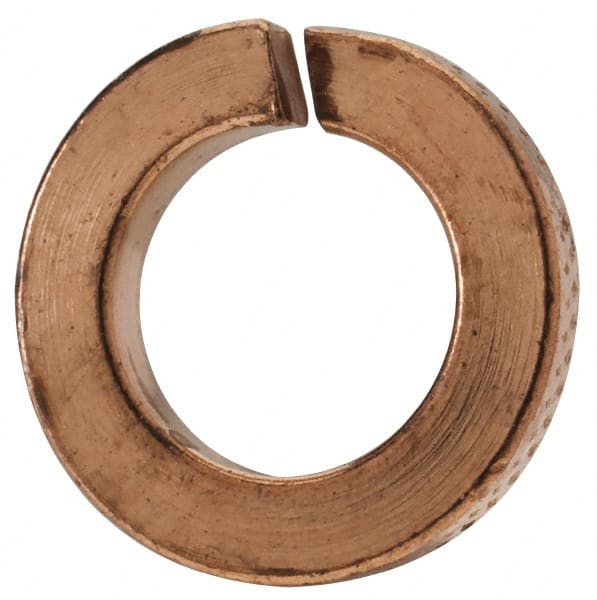

Value Collection - #12, 0.22" ID, 0.056" Thick Split Lock Washer - Silicon Bronze, 0.22" Min ID, 0.227" Max ID, 0.377" Min OD, 0.391" Max OD
Item #: 67498527
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Split lock washers have a split at one point along their outer diameter, which creates compression and tension to lock the nut in place. Split lock washers are used in high-vibration applications.
Silicon bronze is made from an alloy of copper, tin and silicon. It is extremely strong and resistant to brines, gas and sulfites.
| Product Specifications | |
|---|---|
| System of Measurement | Inch |
| Type | Split Lock Washer |
| Screw Size | #12 |
| Material | Silicon Bronze |
| Inside Diameter (Decimal Inch) | 0.2200 |
| Thickness (Decimal Inch) | 0.0560 |
| Minimum Inside Diameter (Decimal Inch) | 0.2200 |
| Maximum Inside Diameter (Decimal Inch) | 0.2270 |
| Minimum Outside Diameter (Decimal Inch) | 0.3770 |
| Maximum Outside Diameter (Decimal Inch) | 0.3910 |
| Military Specification | Does Not Meet Military Specifications |
