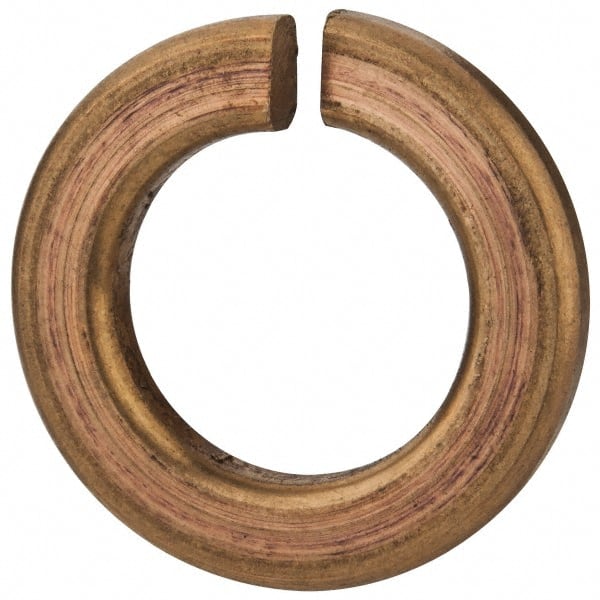

Value Collection - 5/8", 0.628" ID, 1.072" OD, 0.156" Thick Split Lock Washer - Silicon Bronze, 0.635" Min ID, 0.65" Max ID, 1.079" Min OD, 1.093" Max OD
Item #: 67498766
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Split lock washers have a split at one point along their outer diameter, which creates compression and tension to lock the nut in place. Split lock washers are used in high-vibration applications.
Silicon bronze is made from an alloy of copper, tin and silicon. It is extremely strong and resistant to brines, gas and sulfites.
| Product Specifications | |
|---|---|
| System of Measurement | Inch |
| Type | Split Lock Washer |
| Screw Size | 5/8 |
| Material | Silicon Bronze |
| Inside Diameter (Decimal Inch) | 0.6280 |
| Outside Diameter (Decimal Inch) | 1.0720 |
| Thickness (Decimal Inch) | 0.1560 |
| Minimum Inside Diameter (Decimal Inch) | 0.6350 |
| Maximum Inside Diameter (Decimal Inch) | 0.6500 |
| Minimum Outside Diameter (Decimal Inch) | 1.0790 |
| Maximum Outside Diameter (Decimal Inch) | 1.0930 |
| Military Specification | Does Not Meet Military Specifications |
| Fastener Standard | ASME B18.21.1 |
