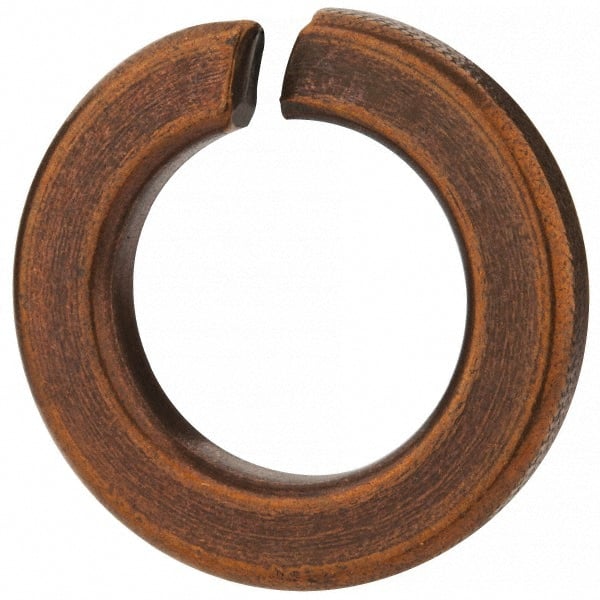

Value Collection - 3/4", 0.753" ID, 1.264" OD, 0.188" Thick Split Lock Washer - Silicon Bronze, 0.76" Min ID, 0.775" Max ID, 1.271" Min OD, 1.291" Max OD
Item #: 67498808
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Split lock washers have a split at one point along their outer diameter, which creates compression and tension to lock the nut in place. Split lock washers are used in high-vibration applications.
Silicon bronze is made from an alloy of copper, tin and silicon. It is extremely strong and resistant to brines, gas and sulfites.
| Product Specifications | |
|---|---|
| System of Measurement | Inch |
| Type | Split Lock Washer |
| Screw Size | 3/4 |
| Material | Silicon Bronze |
| Inside Diameter (Decimal Inch) | 0.7530 |
| Outside Diameter (Decimal Inch) | 1.2640 |
| Thickness (Decimal Inch) | 0.1880 |
| Minimum Inside Diameter (Decimal Inch) | 0.7600 |
| Maximum Inside Diameter (Decimal Inch) | 0.7750 |
| Minimum Outside Diameter (Decimal Inch) | 1.2710 |
| Maximum Outside Diameter (Decimal Inch) | 1.2910 |
| Military Specification | Does Not Meet Military Specifications |
| Fastener Standard | ASME B18.21.1 |
