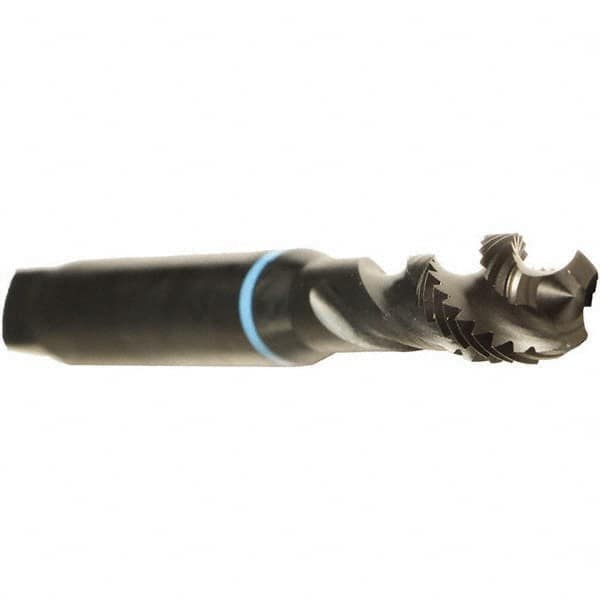

Emuge - M5x0.50 Metric Fine 3 Flute 6H Modified Bottoming Spiral Flute Tap - Cobalt, Oxide Finish, 70mm OAL, Right Hand Flute, Right Hand Thread, Series Enorm
Item #: 67546341
Brand: Emuge
Model #: B0503200.0218
Exact Tooling IR#: 04
Features and Benefits
Modified bottoming chamfers are similar to bottoming chamfers, but they are longer and have more teeth. They are used for threading blind holes and have 2 to 2-1/2 threads.
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Oxide, also known as black oxide or steam oxide, is a surface treatment that prevents chip building, galling and welding on the workpiece. It is commonly used on low carbons, stainless steel and ferrous metals.
| Product Specifications | |
|---|---|
| Thread Size (mm) | M5x0.50 |
| Chamfer | Modified Bottoming |
| Class of Fit | 6H |
| Number of Flutes | 3 |
| Material | Cobalt |
| Finish/Coating | Oxide |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (Decimal Inch) | 2.7559 |
| Overall Length (mm) | 70.00 |
| Helix Angle | 35 |
| Thread Standard | Metric Fine |
| Oversize | No |
| Thread Length (Decimal Inch) | 0.1969 |
| Thread Length (mm) | 5.00 |
| Flute Type | Medium Spiral |
| Series/List | Enorm |
| Tapping Depth (Decimal Inch) | 0.9843 |
| Tapping Depth (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Shank Diameter (mm) | 6.00 |
| Shank Length (Decimal Inch) | 1.7717 |
| Shank Length (mm) | 45 |
