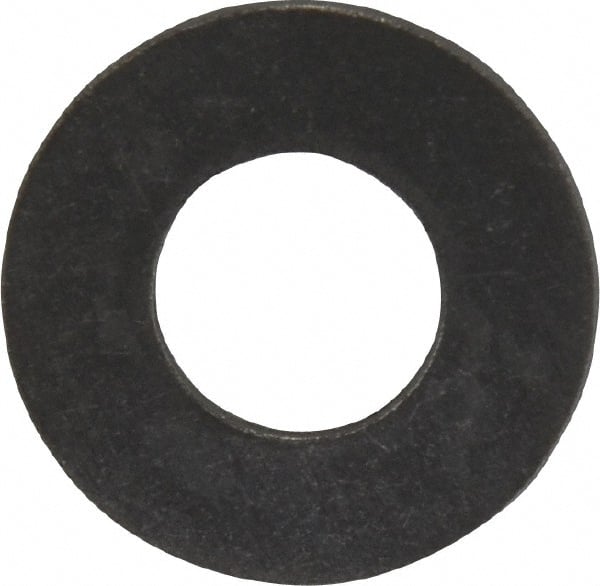

Value Collection - 3/8" Screw, Grade 316 Stainless Steel Standard Flat Washer - 13/32" ID x 13/16" OD, 0.065" Thick
Item #: 67581769
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Flat washers are standard washers used for general-purpose fastening. They are placed under the head of a bolt or above a nut to distribute clamping force and prevent fasteners from pulling through materials.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Type | Standard |
| System of Measurement | Inch |
| Screw Size | 3/8 |
| Inside Diameter (Inch) | 13/32 |
| Outside Diameter (Inch) | 13/16 |
| Thickness (Decimal Inch) | 0.0650 |
| Material Grade | 316 |
| Material | Stainless Steel |
| Minimum Inside Diameter (Decimal Inch) | 0.4010 |
| Maximum Inside Diameter (Decimal Inch) | 0.4210 |
| Minimum Outside Diameter (Decimal Inch) | 0.8050 |
| Maximum Outside Diameter (Decimal Inch) | 0.8270 |
| Minimum Thickness (Decimal Inch) | 0.0510 |
| Maximum Thickness (Decimal Inch) | 0.0800 |
| Color | Silver |
