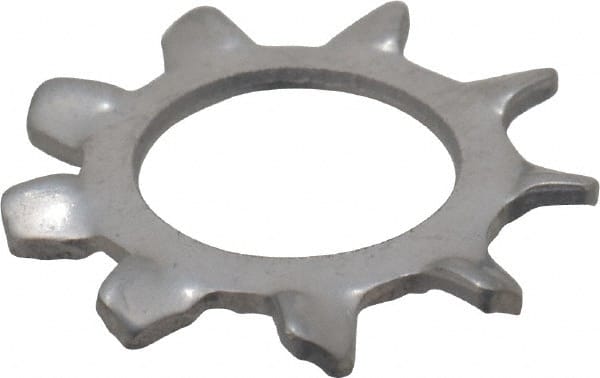

Value Collection - 1/4" Screw, 0.267" ID, Stainless Steel External Tooth Lock Washer - 0.51" OD, Grade 410
Item #: 67582569
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
External tooth lock washers have teeth along the outside diameter. They provide greater resistance to loosening than internal tooth lock washers.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Tooth Type | External Tooth |
| Screw Size | 1/4 |
| System of Measurement | Inch |
| Material | Stainless Steel |
| Inside Diameter (Decimal Inch) | 0.2670 |
| Outside Diameter (Decimal Inch) | 0.5100 |
| Thickness (Decimal Inch) | 0.028 |
| Material Grade | 410 |
| Minimum Inside Diameter (Decimal Inch) | 0.2560 |
| Minimum Outside Diameter (Decimal Inch) | 0.4940 |
| Minimum Thickness (Decimal Inch) | 0.0230 |
| Military Specification | Does Not Meet Military Specifications |
