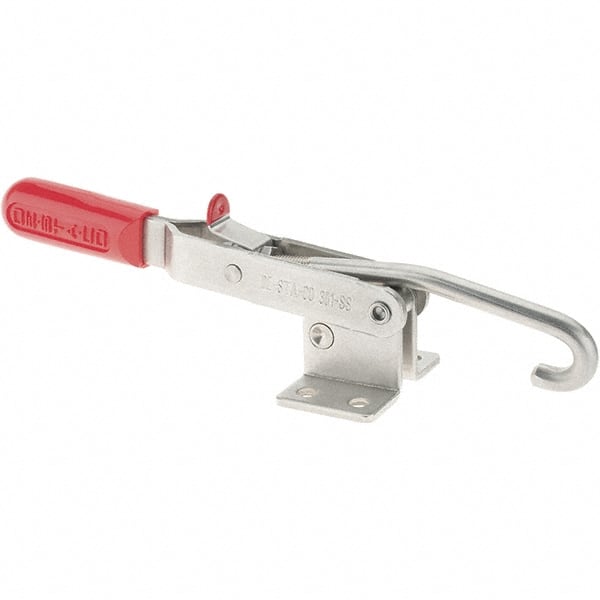

De-Sta-Co - 1,000 Lb Capacity, Horizontal, J Hook, Flanged Base, Stainless Steel Pull Action Latch Clamp - 6.13" Drawing Movement, 13.45" OAL, Straight Handle
Item #: 67596585
Brand: De-Sta-Co
Model #: 381-SS
Exact Tooling IR#: 04
Features and Benefits
Horizontal handles are designed with an in-line latching hook and a lower height profile for better overhead clearance during operations. They are manufactured with holding capacities of up to 7,500 pounds.
Stainless steel is used for a variety of applications. It has a higher heat tolerance and a higher resistance to corrosion than carbon steel, allowing use at higher temperatures.
| Product Specifications | |
|---|---|
| Clamping Orientation | Horizontal |
| Bar Style | J-Hook |
| Load Capacity (N) | 4450.00 |
| Load Capacity (Lb.) | 1000 |
| Base Style | Flanged |
| Material | Stainless Steel |
| Handle Style | Straight |
| Overall Length (Decimal Inch) | 13.4500 |
| Overall Length (mm) | 341.63 |
| Overall Height (mm) | 73.66 |
| Overall Height (Decimal Inch) | 2.9000 |
| Drawing Movement (mm) | 155.70 |
| Drawing Movement (Decimal Inch) | 6.130 |
| Handle Color | Red |
| Base Length (mm) | 54.10 |
| Base Length (Decimal Inch) | 2.1300 |
| Base Width (mm) | 85.85 |
| Base Width (Decimal Inch) | 3.3800 |
| Mounting Hole Diameter (mm) | 10.41 |
| Mounting Hole Diameter (Decimal Inch) | 0.4100 |
| Width Distance Between Mount Holes (mm) | 60.20 |
| Width Distance Between Mount Holes (Decimal Inch) | 2.3700 |
| Length Distance Between Mount Holes (mm) | 54.10 |
| Length Distance Between Mount Holes (Decimal Inch) | 2.1300 |
| Base to Center of Bar (Decimal Inch) | 1.8100 |
| Base to Center of Bar (mm) | 45.97 |
| Includes | Latch Plate; Patented Thumb Control Lever; Threaded J-Hook |
