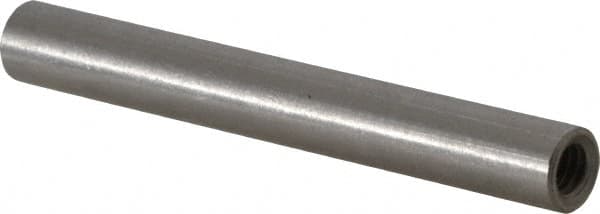

Electro Hardware - #8-32, 2" OAL, Stainless Steel Round Fully Threaded Female Circuit Board Standoffs - 1" Thread Depth, 2" Body Length, Bright Finish
Item #: 67721845
Brand: Electro Hardware
Model #: P625M07F16-832
Exact Tooling IR#: 04
Features and Benefits
Circuit board standoffs with female threads are internally threaded to accept male fasteners or other standoffs. They are internally threaded on one end.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Thread Type | Female |
| Material | Stainless Steel |
| System of Measurement | Inch |
| Body Shape | Round |
| Overall Length (Inch) | 2 |
| Overall Length (Decimal Inch) | 2.0000 |
| Thread Style | Fully Threaded |
| Thread Size | #8-32 |
| Finish/Coating | Bright |
| Outside Diameter (Inch) | 1/4 |
| Outside Diameter (Decimal Inch) | 0.2500 |
| Body Length (Inch) | 2 |
| Thread Depth (Inch) | 1 |
| Length Tolerance (Decimal Inch) | -0.005 to 0.005 |
| Material Grade | 18-8; Grade 303 |
| Fastener Standard | QQ-S-763 |
