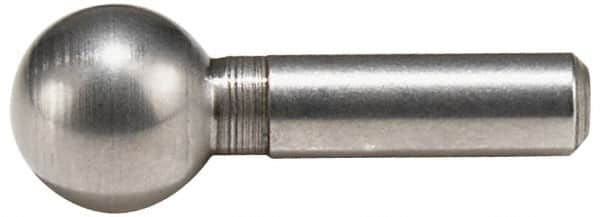

Jergens - 1/2" Ball Diam, 1/4" Shank Diam, Steel Standard Tooling Ball - 1-1/2" Ball Center to Shank Bottom
Item #: 67747535
Brand: Jergens
Model #: 29034
Exact Tooling IR#: 04
Features and Benefits
Steel is made up of an iron and carbon. It offers high tensile strength and corrosion resistance, but may offer some vibration during an operation.
| Product Specifications | |
|---|---|
| Tooling Ball Style | Standard |
| Shoulder | No |
| Break-Away | No |
| Material | Steel |
| Ball Diameter (mm) | 12.70 |
| Ball Diameter (Inch) | 1/2 |
| Ball Diameter (Decimal Inch) | 0.5000 |
| Shank Diameter (mm) | 6.35 |
| Shank Diameter (Inch) | 1/4 |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Tapped Shank | No |
| Heat-Treated | No |
| Ball Center to Shank Bottom (Inch) | 1-1/2 |
| Shank Tolerance (Decimal Inch) | -0.0004; +0.0000 |
| Ball Tolerance (Decimal Inch) | ±0.0002 |
| Ball & Shank Concentricity (Decimal Inch) | 0.0002 |
