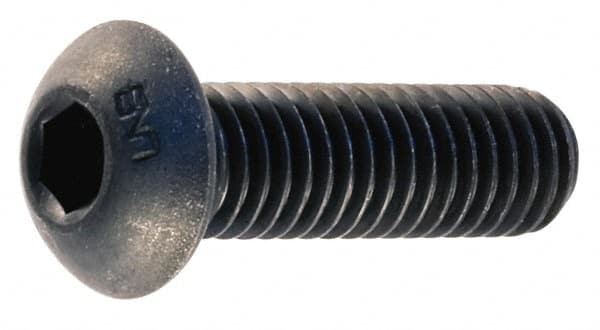

Socket Cap Screw: 1/4-28 x 1, Alloy Steel, Black Oxide Finish Fully Threaded, 5/32 Hex, ANSI B18.3 & BS 2470
Item #: 67858001
Brand: Unbrako
Model #: 120625
Product Specifications
| System Of Measurement | Inch |
| Head Type | Button |
| Drive Type | Hex Socket |
| Drive Size | 5/32 in |
| Drive Size | 0.1562 in; 5/32 in |
| Thread Size (Inch - 0 Decimals) | 1/4-28 |
| Thread Standard | UNF |
| Finish Coating | Black Oxide |
| Length Measurement Type | Length Under Head |
| Thread Style | Fully Threaded |
| Material | Alloy Steel |
| Thread Direction | Right Hand |
| Full or Partial Threading | Fully Threaded |
| Thread Spacing | Fine |
| Thread Fit Class | 3A |
| Head Diameter (Decimal Inch) | 0.4370 |
| Hardness | Rockwell C39 to C44 |
| Head Height | 0.132 in |
| Fastener Standard | ANSI B18.3; BS 2470 |
| Hex Key Size (Inch) | 5/32 |
| Length Under Head (Inch) | 1 |
| Length (Fractional Inch) | 1 |
