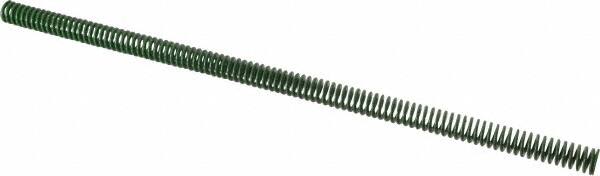

Associated Spring Raymond - 12.5mm Hole Diam, 6.3mm Rod Diam, 12" Free Length, Green Die Spring - 175 N Max Deflection, 125mm Max Deflection, Light Duty, Chromium Alloy Steel
Item #: 67898452
Brand: Associated Spring Raymond
Model #: 203-248
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (mm) | 12.50 |
| Rod Diameter (mm) | 6.30 |
| Free Length (mm) | 305.00 |
| Free Length (Inch) | 12 |
| Load Type | Light-Duty |
| Color | Green |
| Maximum Deflection Load (N) | 175.00 |
| Maximum Deflection (mm) | 125.00 |
| Travel To Solid Load (mm) | 125.00 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
| ISO Number | 10243 |
