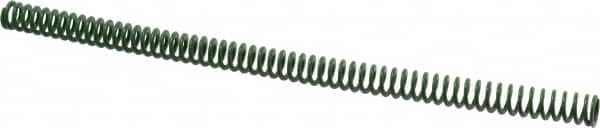

Associated Spring Raymond - 16mm Hole Diam, 8mm Rod Diam, 12" Free Length, Green Die Spring - 312.5 N Max Deflection, 125mm Max Deflection, Light Duty, Chromium Alloy Steel
Item #: 67898551
Brand: Associated Spring Raymond
Model #: 203-348
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (mm) | 16.00 |
| Rod Diameter (mm) | 8.00 |
| Free Length (mm) | 305.00 |
| Free Length (Inch) | 12 |
| Load Type | Light-Duty |
| Color | Green |
| Maximum Deflection Load (N) | 312.50 |
| Maximum Deflection (mm) | 125.00 |
| Travel To Solid Load (mm) | 125.00 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
| ISO Number | 10243 |
