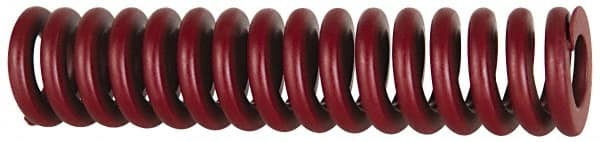

Associated Spring Raymond - 12.5mm Hole Diam, 6.3mm Rod Diam, 12" Free Length, Red Die Spring - 256.2 N Max Deflection, 91.5mm Max Deflection, Strong Duty, Chromium Alloy Steel
Item #: 67900613
Brand: Associated Spring Raymond
Model #: 205-248
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (mm) | 12.50 |
| Rod Diameter (mm) | 6.30 |
| Free Length (mm) | 305.00 |
| Free Length (Inch) | 12 |
| Load Type | Strong |
| Color | Red |
| Maximum Deflection Load (N) | 256.20 |
| Maximum Deflection (mm) | 91.50 |
| Travel To Solid Load (mm) | 91.50 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
| ISO Number | 10243 |
