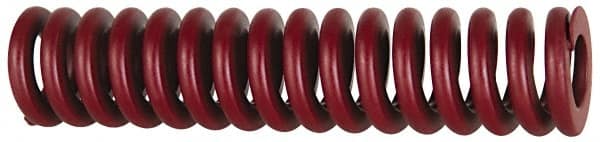

Associated Spring Raymond - 16mm Hole Diam, 8mm Rod Diam, 12" Free Length, Red Die Spring - 649.7 N Max Deflection, 91.5mm Max Deflection, Strong Duty, Chromium Alloy Steel
Item #: 67900712
Brand: Associated Spring Raymond
Model #: 205-348
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (mm) | 16.00 |
| Rod Diameter (mm) | 8.00 |
| Free Length (mm) | 305.00 |
| Free Length (Inch) | 12 |
| Load Type | Strong |
| Color | Red |
| Maximum Deflection Load (N) | 649.70 |
| Maximum Deflection (mm) | 91.50 |
| Travel To Solid Load (mm) | 91.50 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
| ISO Number | 10243 |
