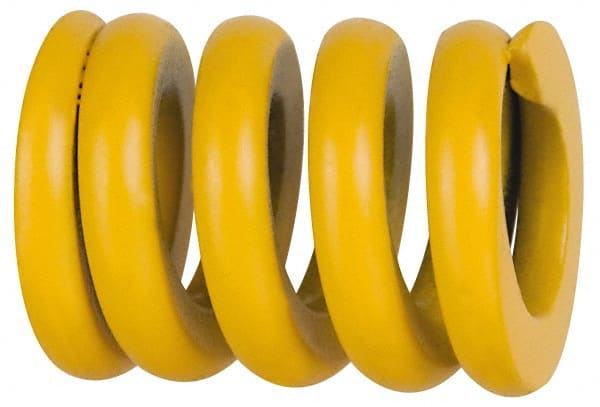

Associated Spring Raymond - 16mm Hole Diam, 8mm Rod Diam, 1-1/4" Free Length, Yellow Die Spring - 712 N Max Deflection, 8mm Max Deflection, Extra Strong, Chromium Alloy Steel
Item #: 67901603
Brand: Associated Spring Raymond
Model #: 206-305
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (mm) | 16.00 |
| Rod Diameter (mm) | 8.00 |
| Free Length (mm) | 32.00 |
| Free Length (Inch) | 1-1/4 |
| Load Type | Extra Strong |
| Color | Yellow |
| Maximum Deflection Load (N) | 712.00 |
| Maximum Deflection (mm) | 8.00 |
| Travel To Solid Load (mm) | 8.00 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
| ISO Number | 10243 |
