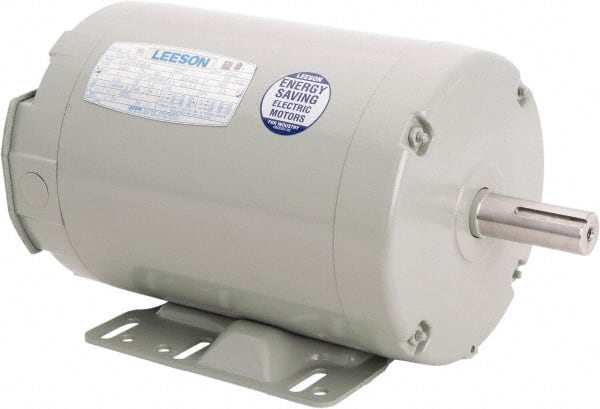

Leeson - 3 Max hp, 3,450 Max RPM, Electric AC DC Motor - 230/460 V Input, Three Phase, 145T Frame, 7/8" Shaft Diam, Rigid Base Mount, TEAO Enclosure
Item #: 67996942
Brand: Leeson
Model #: 120379.00
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Three Phase |
| Type of Enclosure | TEAO |
| Maximum HorsePower | 3 |
| Minimum Horsepower | 3 |
| Name Plate RPMs | 3450 |
| Phase | Three |
| Input Voltage | 230/460 |
| Frame Size | 145T |
| Full Load Amperage | 7.6 |
| Mount Type | Rigid Base |
| Bearing Type | Double Shielded Ball |
| Shaft Diameter (Decimal Inch) | 0.8750 |
| Service Factor Rating | 1.00 |
| Frame Material | Steel |
| Insulation Class | F |
| Applications | Agriculture; Fan |
| Maximum RPM | 3450 |
| PSC Code | 6105 |
