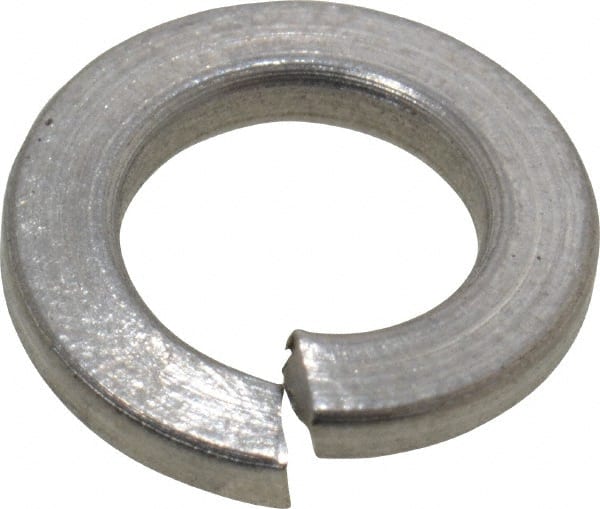

Value Collection - M5, 5.1mm ID, 1.2mm Thick Split Lock Washer - 18-8 Austenitic Grade A2 Stainless Steel, 5.1mm Min ID, 5.4mm Max ID, 9.2mm Max OD
Item #: 68025642
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Split lock washers have a split at one point along their outer diameter, which creates compression and tension to lock the nut in place. Split lock washers are used in high-vibration applications.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| System of Measurement | Metric |
| Type | Split Lock Washer |
| Screw Size | M5 |
| Material | Stainless Steel |
| Material Grade | 18-8; Austenitic Grade A2 |
| Inside Diameter (mm) | 5.10 |
| Thickness (mm) | 1.20 |
| Minimum Inside Diameter (mm) | 5.10 |
| Maximum Inside Diameter (mm) | 5.40 |
| Maximum Outside Diameter (mm) | 9.20 |
| Military Specification | Does Not Meet Military Specifications |
| Fastener Standard | DIN 127B |
