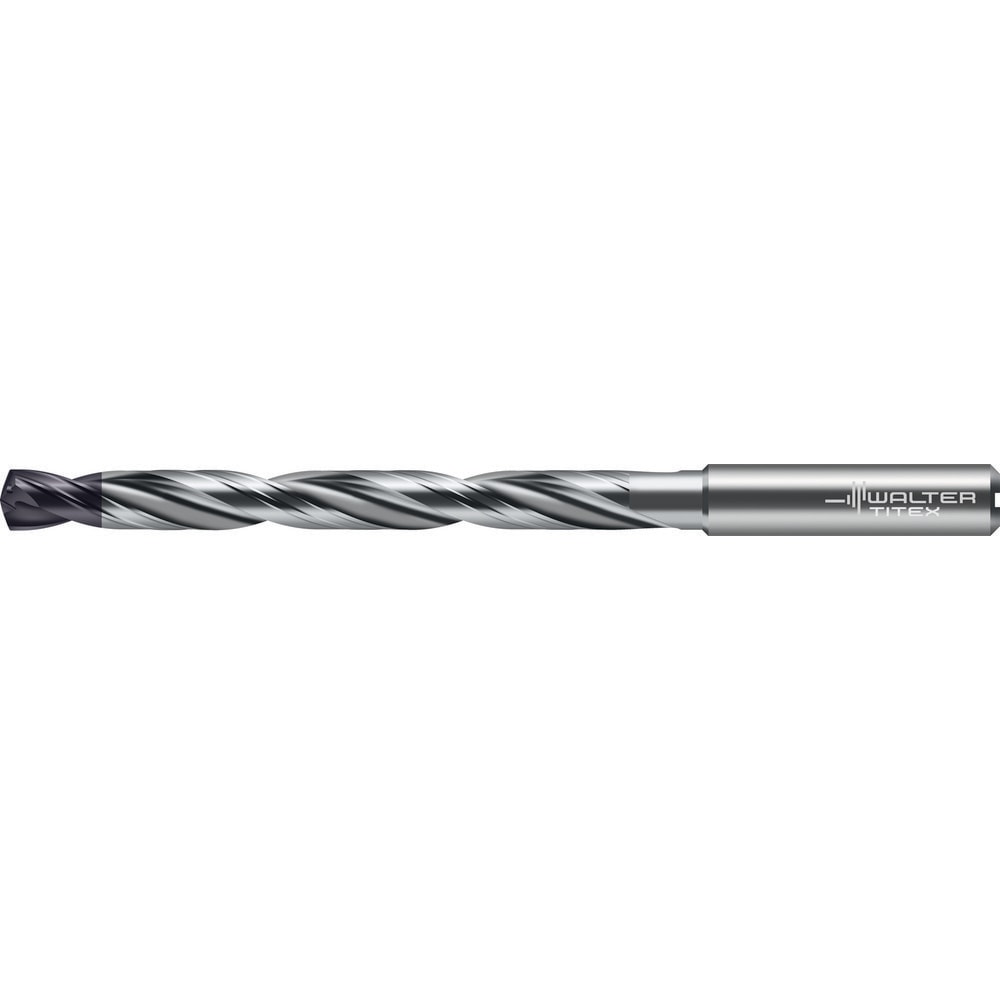

Jobber Length Drill Bits; Drill Bit Size (mm): 16.50; Drill Bit Size (Decimal Inch): 0.6496; Drill Bit Material: Solid Carbide; Drill Point Angle (Degrees): 140; Coating/Finish: ZrN
Item #: 82749029
Brand: Walter-Titex
Model #: 8325201
Product Specifications
| Drill Bit Size (mm) | 16.50 |
| Drill Bit Size (Decimal Inch) | 0.6496 |
| Drill Bit Material | Solid Carbide |
| Drill Point Angle (Degrees) | 140 |
| Coating/Finish | ZrN |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Point Type | Standard |
| Coolant Through | Yes |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.7087 |
| Overall Length (mm) | 223.00 |
| Overall Length (Decimal Inch) | 8.7795 |
| Spiral Type | Regular |
| Flute Length (mm) | 171.00 |
| Flute Length (Decimal Inch) | 6.7323 |
| Series | DC180 |
| Flute By Diameter Ratio | 8xD |
| Shank Diameter (mm) | 18 |
| Maximum Drilling Depth (Decimal Inch) | 6.0236 |
| Maximum Drilling Depth (mm) | 153 |
| Shank Length (mm) | 48 |
| Shank Length (Decimal Inch) | 1.8898 |
| Drill Point Length (mm) | 3.00 |
| Drill Point Length (Decimal Inch) | 0.1182 |
| Drill Bit Diameter Tolerance | m7 |
| Shank Type | Cylindrical |
| UNSPSC Code | 23241605 |
| Country of Origin | France |
