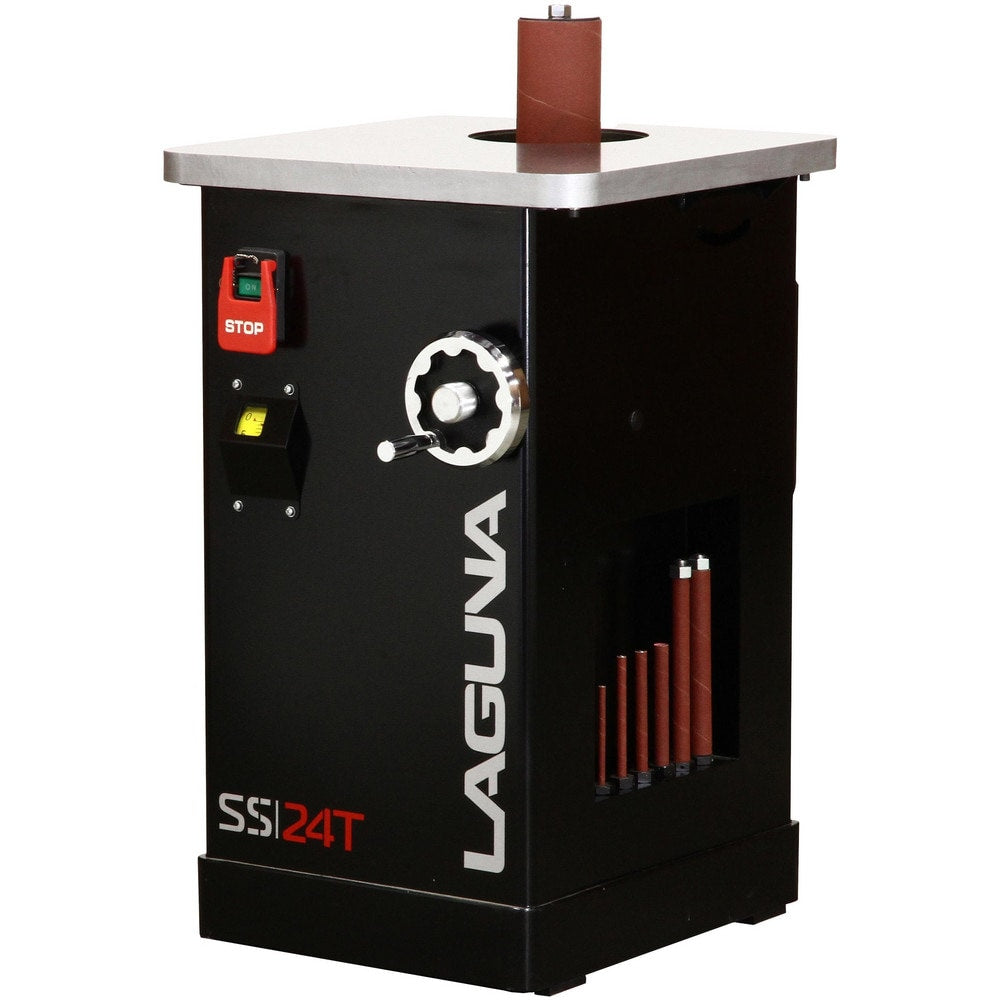

Oscillating Spindle Sanding Machines; Mount Type: Enclosed Base; Minimum Spindle Diameter (Inch): 0.25; Minimum Spindle Diameter: 0.25 in; Maximum Spindle Diameter (Inch): 4; Maximum Spindle Diameter: 4 in; Phase: Single; Spindle Size: 0.75 in, 1 in, 1.5
Item #: 82746595
Brand: Laguna
Model #: MSANOS24X24-110V-1-0320
Product Specifications
| Mount Type | Enclosed Base |
| Minimum Spindle Diameter (Inch) | 0.25 |
| Minimum Spindle Diameter | 0.25 in |
| Maximum Spindle Diameter (Inch) | 4 |
| Maximum Spindle Diameter | 4 in |
| Phase | Single |
| Spindle Size | 0.75 in; 1 in; 1.5 in; 2 in; 3 in; 0.25 in; 0.5 in; 4 in; 0.375 in; 0.625 in |
| Spindle Speed | 1725 |
| Number of Spindles | 10 |
| Number Of Spindles | 10 |
| Oscillations Per Minute | 60 |
| Oscillation Stroke Length | 1.5 in |
| Dust Collection Outlet Diameter | 4 in |
| Voltage | 110.00 Vdc |
| Amperage | 10.0000 A |
| Table Tilt Angle | 45 |
| Table Width | 24.0000 in |
| Control Type | On/Off Switch |
| Table Length | 24.000 in |
| Cord Type | Corded |
| Table Material | Cast Iron |
| Cord Length | 6 in |
| Overall Height | 48 in |
| Overall Depth | 24 in |
| Overall Length | 24.00 in |
| Features | 24" X 24" Table; 60 Oscillations Per Minute; Oil-Bath Gearbox For Worm Gear Oscillation Mechanism; Spindle Tilt Readout.; 38.25" Table Height; 1 HP 110 Volt Motor; Enclosed Stand; Built-In Spindle Storage Racks; 1.5" Oscillation Stroke; 4" Dust Port; 45 Degree Tilting Spindle |
| Includes | 3?; 2?; 1?; 3/4?; 1-1/2?; 4? Spindles And Sanding Sleeves; Spindle Tilt Readout.; 1/2?; Enclosed Stand; 1/4?; 5/8?; 3/8? |
| Standards | CSA |
| Horse Power | 1 hp |
| Oscillations per Minute | 60 |
| Oscillation Stroke Length (Inch) | 1.5 |
| UNSPSC Code | 23101525 |
| Country of Origin | Taiwan |
