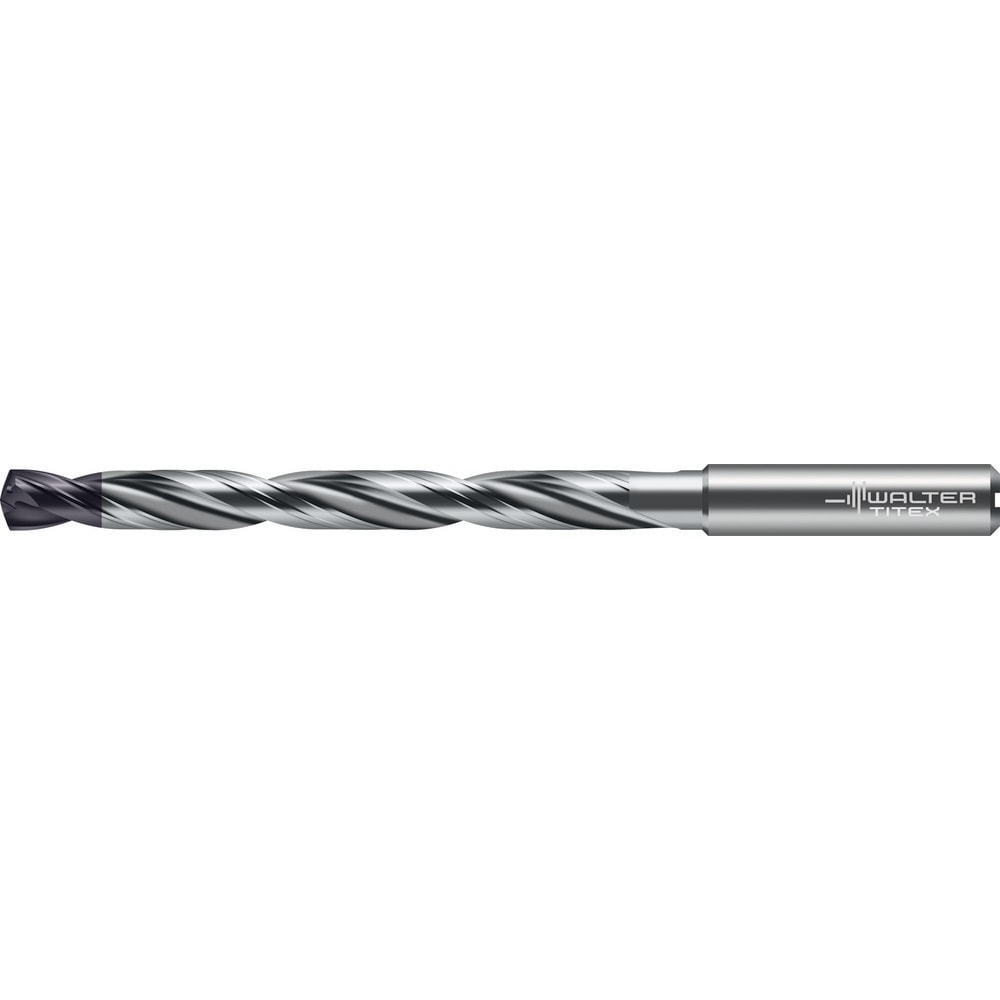

Jobber Length Drill Bits; Drill Bit Size (mm): 19.00; Drill Bit Size (Decimal Inch): 0.7480; Drill Bit Material: Solid Carbide; Drill Point Angle (Degrees): 140; Coating/Finish: ZrN
Item #: 82749789
Brand: Walter-Titex
Model #: 8325206
Product Specifications
| Drill Bit Size (mm) | 19.00 |
| Drill Bit Size (Decimal Inch) | 0.7480 |
| Drill Bit Material | Solid Carbide |
| Drill Point Angle (Degrees) | 140 |
| Coating/Finish | ZrN |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Point Type | Standard |
| Coolant Through | Yes |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Overall Length (mm) | 244.00 |
| Overall Length (Decimal Inch) | 9.6063 |
| Spiral Type | Regular |
| Flute Length (mm) | 190.00 |
| Flute Length (Decimal Inch) | 7.4803 |
| Series | DC180 |
| Flute By Diameter Ratio | 8xD |
| Shank Diameter (mm) | 20 |
| Maximum Drilling Depth (Decimal Inch) | 6.6929 |
| Maximum Drilling Depth (mm) | 170 |
| Shank Length (mm) | 50 |
| Shank Length (Decimal Inch) | 1.9685 |
| Drill Point Length (mm) | 3.46 |
| Drill Point Length (Decimal Inch) | 0.1361 |
| Drill Bit Diameter Tolerance | m7 |
| Shank Type | Cylindrical |
| UNSPSC Code | 23241605 |
| Country of Origin | France |
