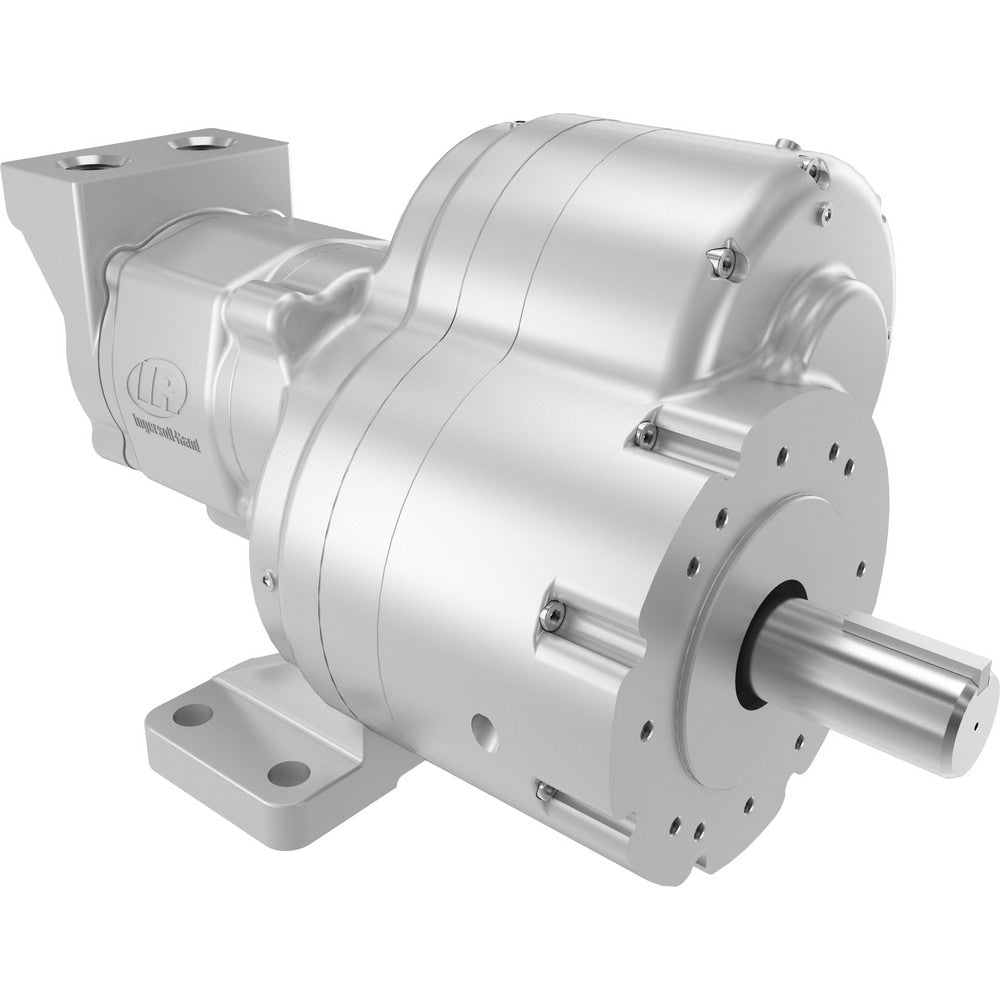

Air Actuated Motors; Gear Ratio: 78:1; Horsepower: 7.9; Maximum RPM: 120.000; Maximum Air Flow: 450; Shaft Length: 3.0000; Shaft Diameter (Inch): 1-1/2
Item #: 92552223
Brand: Ingersoll-Rand
Model #: 92RB078
Product Specifications
| Gear Ratio | 78:1 |
| Horsepower | 7.9 |
| Maximum RPM | 120.000 |
| Maximum Air Flow | 450 |
| Shaft Length | 3.0000 |
| Shaft Diameter (Inch) | 1-1/2 |
| Shaft Rotation | Reversible |
| Shaft Type | Round; Keyed |
| Maximum Working Pressure (Psi - 3 Decimals) | 90.000 |
| Torque (Ft/Lb) | 1090.0000 |
| Overall Diameter (Decimal Inch - 4 Decimals) | 10.5620 |
| Overall Length (Decimal Inch) | 15.2200 |
| Overall Height (Decimal Inch) | 10.5000 |
| Mount Style | Face; Foot |
| UNSPSC Code | 26101301 |
| Country of Origin | UNITED STATES |
