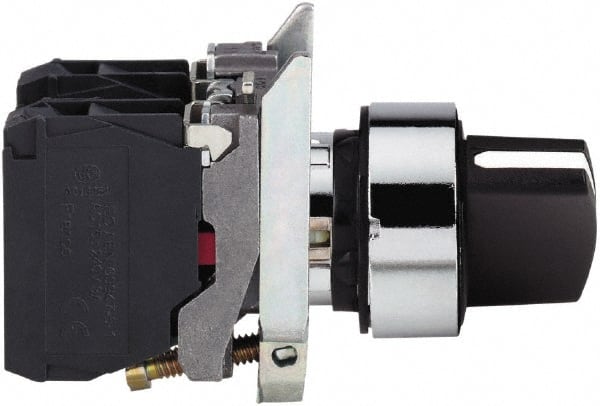

Square D - 0.87 Inch Mount Hole, 3 Position, Knob Operated, Selector Switch Only - Black, Momentary (MO), Nonilluminated, 2NO, Shock and Vibration Resistant
Item #: 68122522
Brand: Square D
Model #: XB4BD53
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Mounting Hole Diameter (mm) | 22 |
| Mounting Hole Diameter (Decimal Inch) | 0.8700 |
| Selector Switch Type | Selector Switch Only |
| Operator Type | Knob |
| Number of Positions | 3 |
| Operation Type | Momentary (MO) |
| Operator Color | Black |
| Terminal Type | Screw Clamp |
| Contact Configuration | 2NO |
| Voltage | 120 VAC; 125 VDC; 240 VAC; 250 VDC; 600 VAC/VDC |
| Amperage | 0.10 @ 600 VDC; 0.27 @ 250 VDC; 0.55 @ 125 VDC; 1.20 @ 600 VAC; 3 @ 240 VAC; 6 @ 120 VAC |
| Operates in Position | Center |
| Operator Illumination | NonIlluminated |
| Bezel Material | Metal |
| Bezel Color | Chrome |
| Resistance Features | Shock Resistant; Vibration Resistant |
| Ingress Protection Rating | IP69K |
| NEMA Rating | 4X/13 |
| Standards Met | Bureau Veritas; CSA C22.2 No. 14; DNV; EN/IEC 60947-1; EN/IEC 60947-5-1; EN/IEC 60947-5-4; EN/IEC 60947-5-5; GL; JIS C 4520; LROS; RINA; UL 508 |
