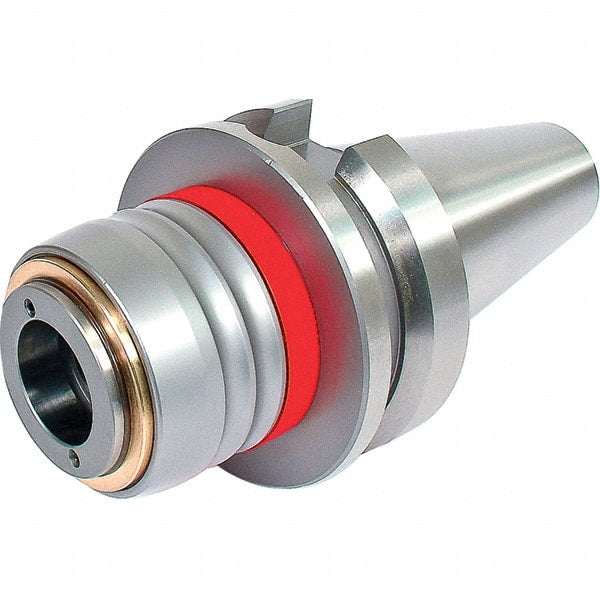

Techniks - BT30 Taper Shank Rigid Tapping Adapter - #0 to 3/8" Tap Capacity, 2.09" Projection, Quick Change
Item #: 68158120
Brand: Techniks
Model #: 23400-30BT
Exact Tooling IR#: 04
Features and Benefits
Rigid or solid tapping styles are used for general purpose CNC machining. The rigid tapping cycle synchronizes the machine and spindle rotation to match a specific thread pitch. It is used at higher speeds, but does not compensate for length during the taping cycle.
Taper shanks maintain balance and rigidity during high speeds and heavy-duty applications. They have smaller diameters than straight shanks.
| Product Specifications | |
|---|---|
| Tapping Style | Rigid |
| Shank Type | Taper Shank |
| Taper Size | BT30 |
| Minimum Tap Capacity (Inch) | #0 |
| Maximum Tap Capacity (Inch) | 3/8 |
| Projection (Decimal Inch) | 2.0900 |
| Quick Change | Yes |
| Minimum Collet Capacity (mm) | M4 |
| Minimum Collet Capacity (Inch) | 1/8; #6 |
| Maximum Collet Capacity (Inch) | 3/8 |
| Maximum Collet Capacity (mm) | M8 |
| Overall Length (Decimal Inch) | 3.9960 |
