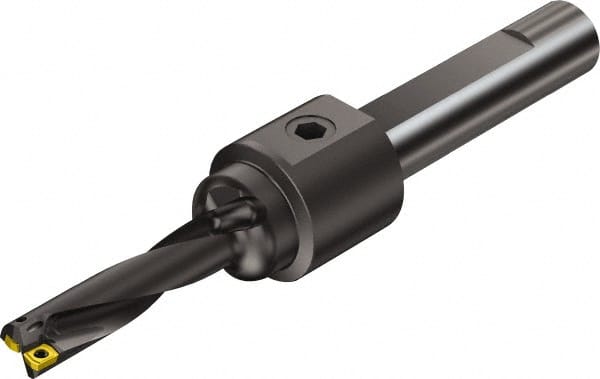

Sandvik Coromant - 2.638" Max Drill Depth, 4xD, 5/8" Diam, Indexable Insert Drill - 2 Inserts, 3/4" Shank Diam, Flange Shank
Item #: 68465715
Brand: Sandvik Coromant
Model #: 5724487
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880 |
| Drill Diameter (Inch) | 5/8 |
| Drill Diameter (Decimal Inch) | 0.6250 |
| Maximum Drill Depth (Decimal Inch) | 2.6380 |
| Shank Type | Flange |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 3/4 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.6460 |
| Overall Length/Projection (Decimal Inch) | 7.3760 |
| Insert Compatibility | 880-020204H-C-GM; 880-0202W04H-P-GM |
| Flute Length (Decimal Inch) | 2.5000 |
| Body Length (Decimal Inch) | 4.3640 |
| Shank Length (Decimal Inch) | 3.0120 |
| Series | CoroDrill 880 |
| Radial Adjustment (-mm) | 0.25 |
