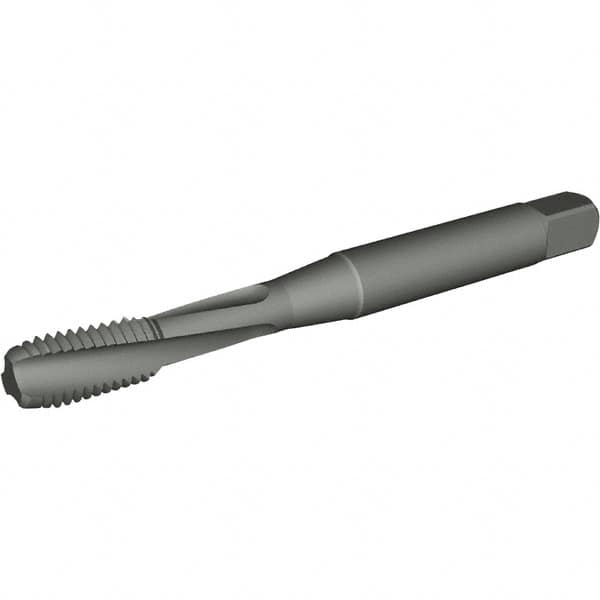

Kennametal - 3/8-16 UNC 3 Flute 2B Modified Bottoming Spiral Flute Tap - Powdered Metal, Nitride Finish, 74.5mm OAL, Right Hand Flute, Right Hand Thread, H5, Series T662
Item #: 68477488
Brand: Kennametal
Model #: 5566106
Exact Tooling IR#: 04
Features and Benefits
Modified bottoming chamfers are similar to bottoming chamfers, but they are longer and have more teeth. They are used for threading blind holes and have 2 to 2-1/2 threads.
Powdered Metal (PM) is tougher and more cost effective than solid carbide. It is commonly used on highly abrasive materials including high silicon aluminums.
Nitride is a thin, hard-shell coating that supports surface hardness of the tool. It is commonly used where abrasive or wearing conditions exist.
Slow Spiral Flutes with 8-20 degree angles are used for tough materials like high nickel alloys, titanium and some series of stainless steels.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | 3/8-16 |
| Chamfer | Modified Bottoming |
| Class of Fit | 2B |
| Thread Limit | H5 |
| Number of Flutes | 3 |
| Material | Powdered Metal |
| Finish/Coating | Nitride |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (Decimal Inch) | 2.9300 |
| Overall Length (mm) | 74.50 |
| Helix Angle | 10 |
| Thread Standard | UNC |
| Oversize | No |
| Thread Length (Decimal Inch) | 0.5900 |
| Thread Length (mm) | 15.10 |
| Flute Type | Slow Spiral |
| Series/List | T662 |
| Neck Length (Decimal Inch) | 0.6700 |
| Tapping Depth (Decimal Inch) | 1.2600 |
| Tapping Depth (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 0.3810 |
| Shank Diameter (mm) | 9.68 |
| Shank Length (Decimal Inch) | 1.3100 |
| Shank Length (mm) | 33 |
| Square Length (Inch) | 0.4400 |
