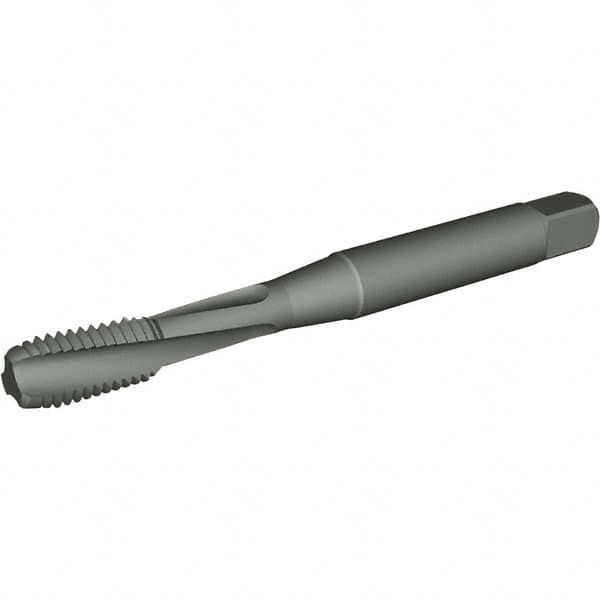

Kennametal - #10-24 UNC 3 Flute 2B/3B Modified Bottoming Spiral Flute Tap - Powdered Metal, TiN/CrC/C Finish, 60.3mm OAL, Right Hand Flute, Right Hand Thread, H3, Series T662
Item #: 68478221
Brand: Kennametal
Model #: 5566071
Exact Tooling IR#: 04
Features and Benefits
Modified bottoming chamfers are similar to bottoming chamfers, but they are longer and have more teeth. They are used for threading blind holes and have 2 to 2-1/2 threads.
Powdered Metal (PM) is tougher and more cost effective than solid carbide. It is commonly used on highly abrasive materials including high silicon aluminums.
Slow Spiral Flutes with 8-20 degree angles are used for tough materials like high nickel alloys, titanium and some series of stainless steels.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | #10-24 |
| Chamfer | Modified Bottoming |
| Class of Fit | 2B/3B |
| Thread Limit | H3 |
| Number of Flutes | 3 |
| Material | Powdered Metal |
| Finish/Coating | TiN/CrC/C |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (Decimal Inch) | 2.3700 |
| Overall Length (mm) | 60.30 |
| Helix Angle | 10 |
| Thread Standard | UNC |
| Oversize | No |
| Thread Length (Decimal Inch) | 0.4700 |
| Thread Length (mm) | 12.00 |
| Flute Type | Slow Spiral |
| Series/List | T662 |
| Neck Length (Decimal Inch) | 0.4500 |
| Tapping Depth (Decimal Inch) | 0.9200 |
| Tapping Depth (mm) | 23.00 |
| Shank Diameter (Decimal Inch) | 0.1940 |
| Shank Diameter (mm) | 4.93 |
| Shank Length (Decimal Inch) | 1.2400 |
| Shank Length (mm) | 31 |
| Square Length (Inch) | 1/4 |
