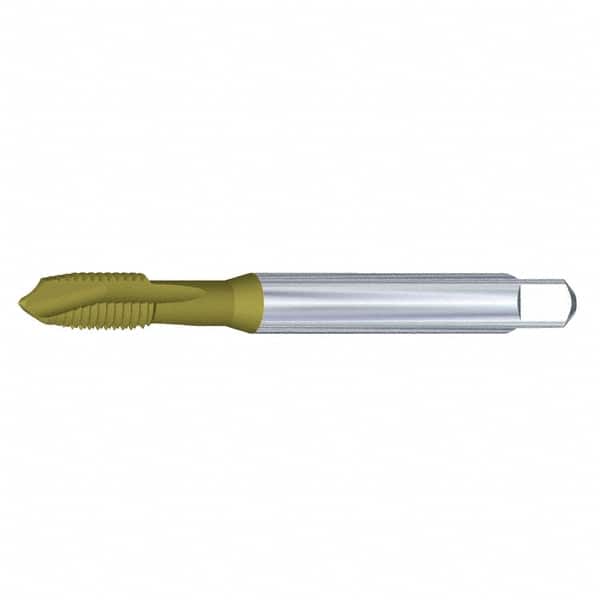

Kennametal - M33x3.50 Metric, 4 Flute, Oxide Finish, Vanadium High Speed Steel Spiral Point Tap - Plug Chamfer, Right Hand Thread, 180mm OAL, 42mm Thread Length, 25mm Shank Diam, 6H Class of Fit, Series T820
Item #: 68482793
Brand: Kennametal
Model #: 5417274
Exact Tooling IR#: 04
Features and Benefits
Plug chamfers are the most commonly used chamfer and are designed for efficiently threading through and blind holes. They have 3 to 5 threads.
Oxide, also known as black oxide or steam oxide, is a surface treatment that prevents chip building, galling and welding on the workpiece. It is commonly used on low carbons, stainless steel and ferrous metals.
Vanadium High Speed Steel (HSSE) is made of high speed steel, carbon, vanadium carbide and other alloys to increase abrasive wear resistance and toughness. It is commonly used in general applications on stainless steels and high silicon aluminums.
| Product Specifications | |
|---|---|
| Thread Size (mm) | M33x3.50 |
| Number of Flutes | 4 |
| Chamfer | Plug |
| Class of Fit | 6H |
| Finish/Coating | Oxide |
| Material | Vanadium High Speed Steel |
| Through Coolant | NonThrough Coolant |
| Thread Direction | Right Hand |
| Overall Length (Decimal Inch) | 7.0900 |
| Overall Length (mm) | 180.00 |
| Oversize | No |
| Thread Standard | Metric |
| Thread Length (Decimal Inch) | 1.6500 |
| Thread Length (mm) | 42.00 |
| Series/List | T820 |
| Neck Length (Decimal Inch) | 2.2900 |
| Style | Plug |
| Tapping Depth (Inch) | 3.9400 |
| Tapping Depth (mm) | 100.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Shank Diameter (mm) | 25.00 |
| Square Length (Inch) | 0.9100 |
| Square Size (Decimal Inch) | 0.7870 |
| Square Size (mm) | 20.00 |
