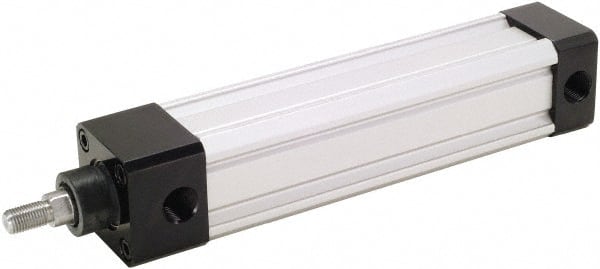

ARO/Ingersoll-Rand - 4" Stroke x 1-1/2" Bore Double Acting Air Cylinder - 3/8 Port, 7/16-20 Rod Thread, 250 Max psi, 185°F
Item #: 68483510
Brand: ARO/Ingersoll-Rand
Model #: ANAQK-AGBAB-040
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Double Acting |
| Bore Size (Inch) | 1-1/2 |
| Rod Diameter (Inch) | 5/8 |
| Rod Diameter (Decimal Inch) | 1.000 |
| Stroke Length (Inch) | 4 |
| Mounting Style | Side Tapped |
| Port Size | 3/8 |
| Port Type | NPT |
| Width (Decimal Inch) | 2.0000 |
| Length (Decimal Inch) | 9.380 |
| Mount Thread | 1/4-20 |
| Material | Aluminum |
| Seal Material | Buna-N |
| Maximum Working Pressure (psi) | 250 |
| Rod Thread Size | 7/16-20 |
| Cushions | Cushioned, Both Ends |
