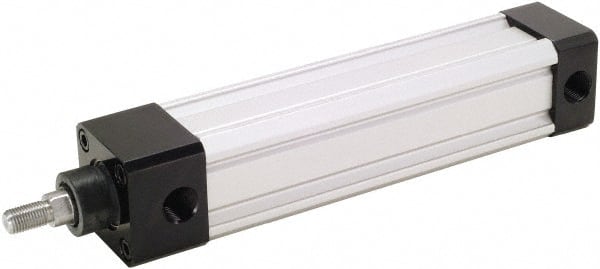

ARO/Ingersoll-Rand - 2" Stroke x 4" Bore Double Acting Air Cylinder - 1/2 Port, 3/4-16 Rod Thread, 250 Max psi, 185°F
Item #: 68483635
Brand: ARO/Ingersoll-Rand
Model #: ANA4M-AGXAB-020
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Double Acting |
| Bore Size (Inch) | 4 |
| Rod Diameter (Inch) | 1 |
| Rod Diameter (Decimal Inch) | 1.000 |
| Stroke Length (Inch) | 2 |
| Mounting Style | Side Tapped |
| Port Size | 1/2 |
| Port Type | NPT |
| Width (Decimal Inch) | 4.5000 |
| Length (Decimal Inch) | 8.760 |
| Mount Thread | 1/2-13 |
| Material | Aluminum |
| Seal Material | Buna-N |
| Maximum Working Pressure (psi) | 250 |
| Rod Thread Size | 3/4-16 |
| Cushions | Non-Cushioned |
