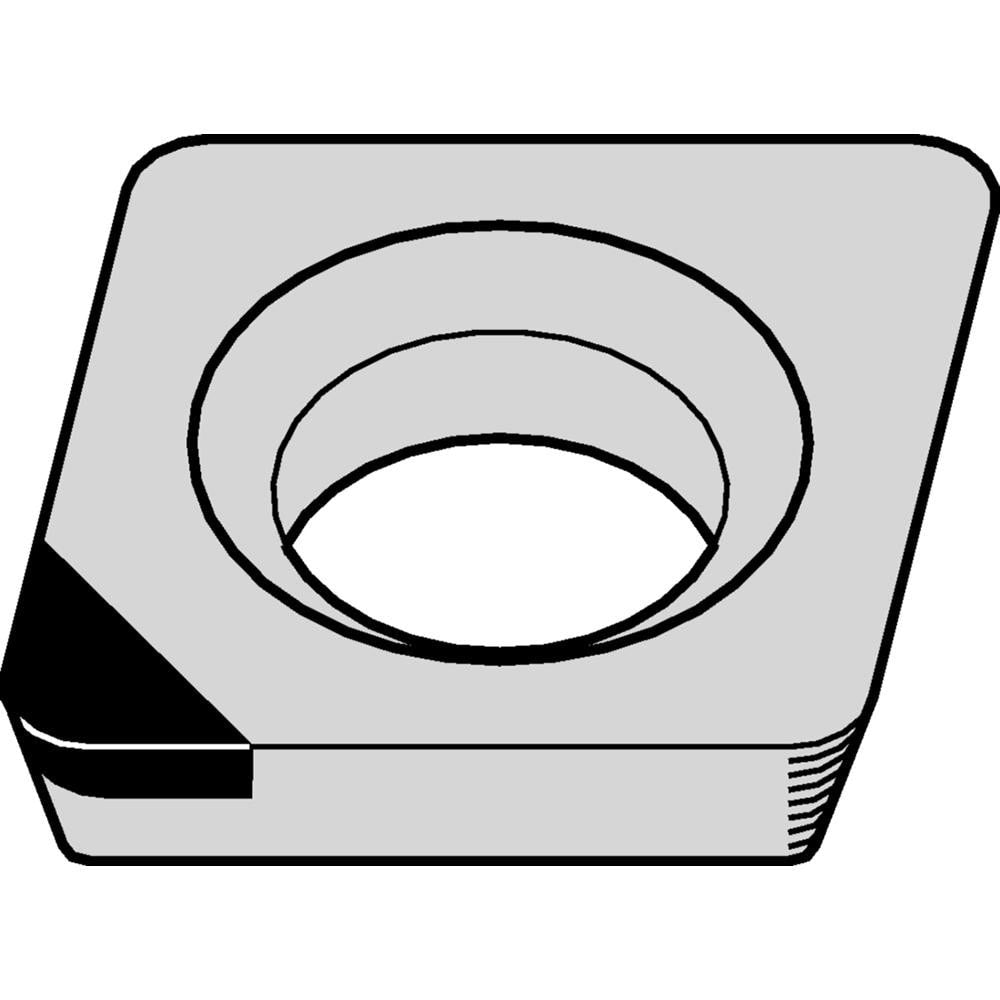

Brand: Widia / Part #: 3898744
Item #: 94095981
Brand: Widia
Model #: 3898744
Product Specifications
| Insert Style | CDHB |
| Insert Shape Code | C |
| Insert Size Code | 120605 |
| Insert Shape | Diamond |
| Coating/Finish | Uncoated |
| Manufacturer Grade | WDN25U |
| Corner Radius (Decimal Inch) | 0.0071 |
| Insert Material | PCD |
| Hole Diameter (Decimal Inch) | 0.0839 |
| Maximum Depth of Cut (Decimal Inch) | 0.0795 |
| Inscribed Circle (Decimal Inch) | 0.1562 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.0400 |
| Clearance Code | D |
| Tolerance Code | H |
| Included Angle | 80.00 |
| Relief Angle | 15.000 |
| Series | CDHB |
| Coating Process | Uncoated |
| Rake | Positive |
| Wiper Edge | Yes |
| Insert Length (Decimal Inch) | 0.1590 |
| Number Of Cutting Edges | 1 |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Ansi Code | CDHB120605FST |
| Iso Code | CDHBS4T002FST |
| Manufacturers Catalog Number | CDHB120605FST |
| Cutting Direction | Neutral |
| Single or Multi Tipped | Single Tipped |
| Coating Classification | Uncoated |
| Chip Breaker | FST |
| Cutting Edge Style | Sharp |
| Style | CDHB |
| Width (Decimal Inch - 4 Decimals) | 0.1562 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | External Turning; Internal Turning |
