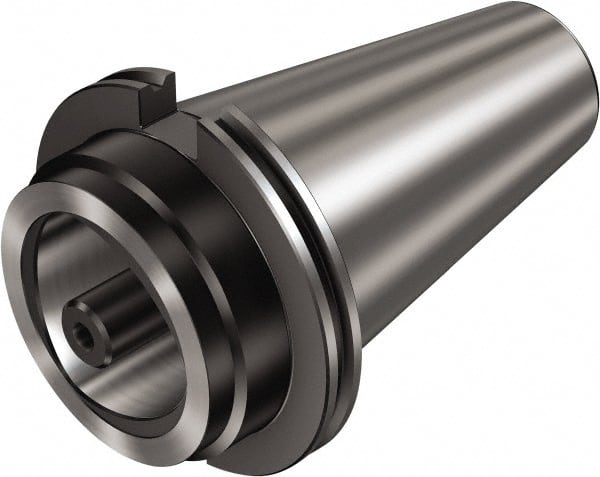

Sandvik Coromant - CAT50 Outside Taper, C5 Inside Modular Connection, CAT to Capto Taper Adapter - 30mm Projection, 50mm Nose Diam, 131.8mm OAL, Through Coolant
Item #: 68549690
Brand: Sandvik Coromant
Model #: 6408302
Exact Tooling IR#: 04
Features and Benefits
Taper adapters are used for holding a tapered shank or toolholder.
| Product Specifications | |
|---|---|
| Type | Taper Adapter |
| Taper Adapter Type | CAT to Capto |
| Outside Taper Size | CAT50 |
| Inside Modular Connection Size | C5 |
| Projection (Decimal Inch) | 1.1811 |
| Projection (mm) | 30.00 |
| Through Coolant | Yes |
| Nose Diameter (Decimal Inch) | 1.9685 |
| Nose Diameter (mm) | 50.00 |
| Overall Length (mm) | 131.80 |
| Overall Length (Decimal Inch) | 5.1890 |
| Collar Diameter (Decimal Inch) | 3.8740 |
