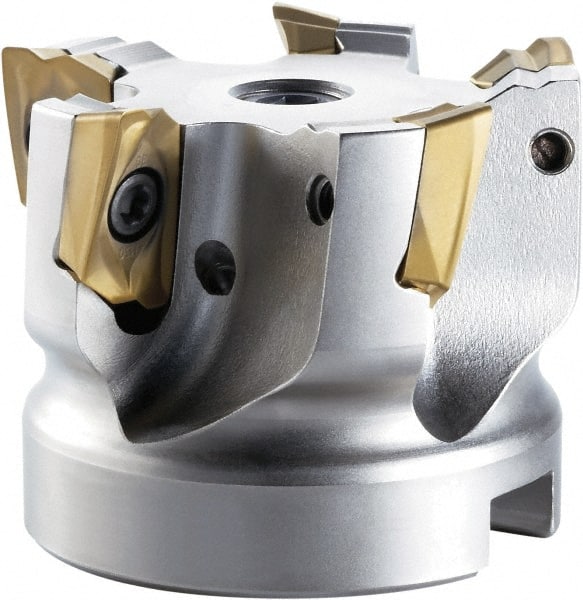

OSG - 5 Inserts, 2" Cut Diam, 3/4" Arbor Diam, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 40mm High, ZD_T11... Insert Compatibility, Through Coolant, Series PHOENIX-PSE
Item #: 68567551
Brand: OSG
Model #: 7801200
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Lead Angle | 0/90 |
| Overall Height (mm) | 40.00 |
| Insert Compatibility | ZD_T11... |
| Series | PHOENIX-PSE |
| Through Coolant | Yes |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Screw |
| Cutter Style | PSE11R200A075-5 |
| Number of Flutes | 5 |
| Hub Diameter (mm) | 45.00 |
| Keyway Width (mm) | 8.00 |
| Pitch | Medium |
