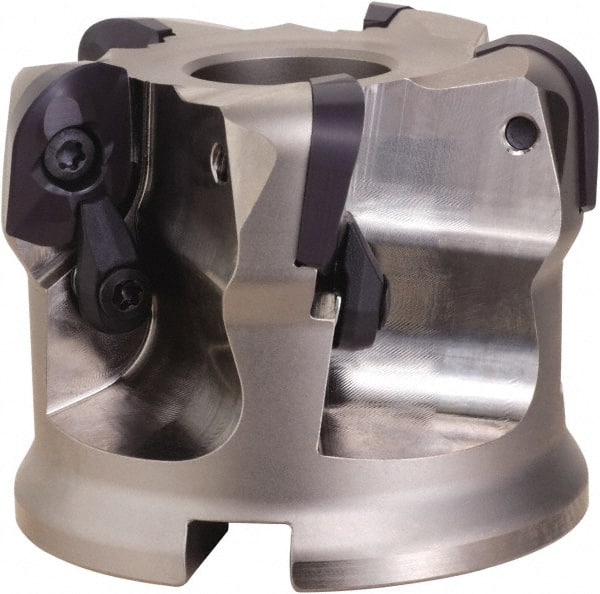

OSG - 3 Inserts, 2.48" Cutter Diam, 0.118" Max Depth of Cut, Indexable High-Feed Face Mill - 0.866" Arbor Hole Diam, 2.48" High, DFR20R063M22.0-03 Toolholder, ADMT20.. Inserts, Series PHOENIX-PDR
Item #: 68568062
Brand: OSG
Model #: 7800057
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.4800 |
| Maximum Depth of Cut (Decimal Inch) | 0.1180 |
| Arbor Hole Diameter (Decimal Inch) | 0.8660 |
| Overall Height (Decimal Inch) | 2.4800 |
| Series | PHOENIX-PDR |
| Cutter Style | DFR20R063M22.0-03 |
| Number of Cutter Inserts | 3 |
| Insert Compatibility | ADMT20.. |
| Cutting Direction | Right Hand |
| Insert Holding Method | Clamp |
| Number of Flutes | 3 |
| Maximum Body Diameter (Decimal Inch) | 2.3620 |
| Through Coolant | No |
