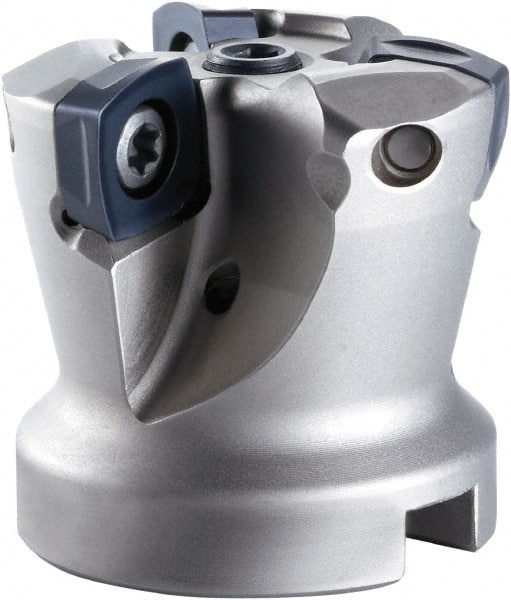

OSG - 8 Inserts, 100mm Cutter Diam, 0.06" Max Depth of Cut, Indexable High-Feed Face Mill - 32mm Arbor Hole Diam, 0.5669" Keyway Width, 2.4803" High, PHC12R100M32-8 Toolholder, SXMT12.. Inserts, Series PHOENIX-PHC
Item #: 68568161
Brand: OSG
Model #: 7800613
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 3.9370 |
| Cutting Diameter (mm) | 100.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0600 |
| Arbor Hole Diameter (Decimal Inch) | 1.2598 |
| Arbor Hole Diameter (mm) | 32.00 |
| Overall Height (Decimal Inch) | 2.4803 |
| Series | PHOENIX-PHC |
| Cutter Style | PHC12R100M32-8 |
| Number of Cutter Inserts | 8 |
| Insert Compatibility | SXMT12.. |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Number of Flutes | 8 |
| Maximum Body Diameter (Decimal Inch) | 2.3622 |
| Through Coolant | Yes |
| Keyway Width (Decimal Inch) | 0.5669 |
