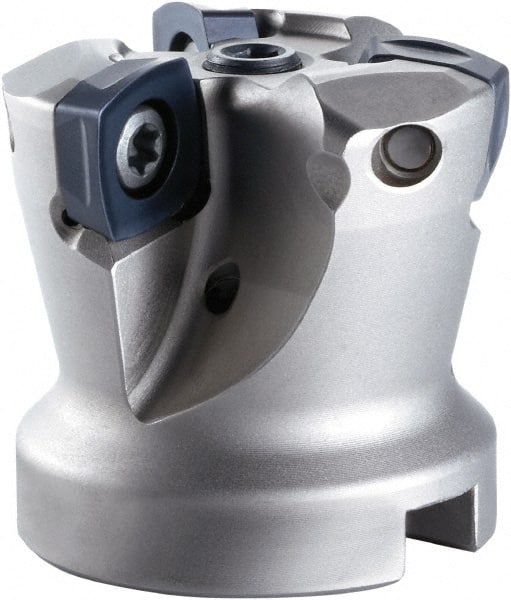

OSG - 5 Inserts, 50mm Cutter Diam, 0.04" Max Depth of Cut, Indexable High-Feed Face Mill - 22.23mm Arbor Hole Diam, 0.315" Keyway Width, 1.9685" High, PHC09R050M22.2-5 Toolholder, SDMT09.. Inserts, Series PHOENIX-PHC
Item #: 68568211
Brand: OSG
Model #: 7800605
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.9685 |
| Cutting Diameter (mm) | 50.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0400 |
| Arbor Hole Diameter (Decimal Inch) | 0.8750 |
| Arbor Hole Diameter (mm) | 22.23 |
| Overall Height (Decimal Inch) | 1.9685 |
| Series | PHOENIX-PHC |
| Cutter Style | PHC09R050M22.2-5 |
| Number of Cutter Inserts | 5 |
| Insert Compatibility | SDMT09.. |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Number of Flutes | 5 |
| Maximum Body Diameter (Decimal Inch) | 2.3622 |
| Through Coolant | Yes |
| Keyway Width (Decimal Inch) | 0.3150 |
