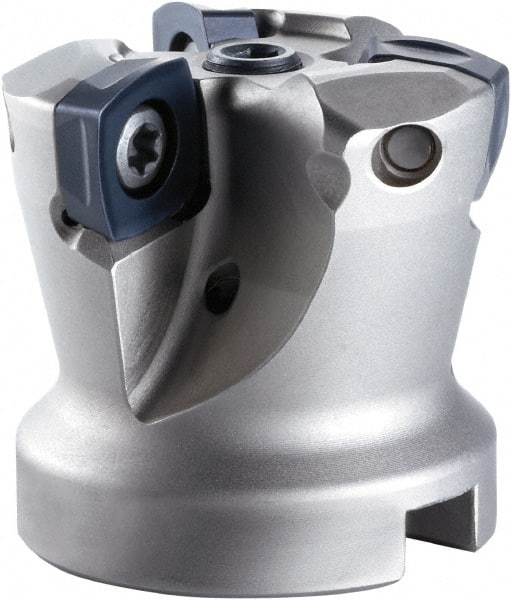

OSG - 6 Inserts, 63mm Cutter Diam, 0.04" Max Depth of Cut, Indexable High-Feed Face Mill - 22mm Arbor Hole Diam, 0.4094" Keyway Width, 1.9685" High, PHC09R063M22-6 Toolholder, SDMT09.. Inserts, Series PHOENIX-PHC
Item #: 68568229
Brand: OSG
Model #: 7800603
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.4803 |
| Cutting Diameter (mm) | 63.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0400 |
| Arbor Hole Diameter (Decimal Inch) | 0.8661 |
| Arbor Hole Diameter (mm) | 22.00 |
| Overall Height (Decimal Inch) | 1.9685 |
| Series | PHOENIX-PHC |
| Cutter Style | PHC09R063M22-6 |
| Number of Cutter Inserts | 6 |
| Insert Compatibility | SDMT09.. |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Number of Flutes | 6 |
| Maximum Body Diameter (Decimal Inch) | 1.8504 |
| Through Coolant | Yes |
| Keyway Width (Decimal Inch) | 0.4094 |
