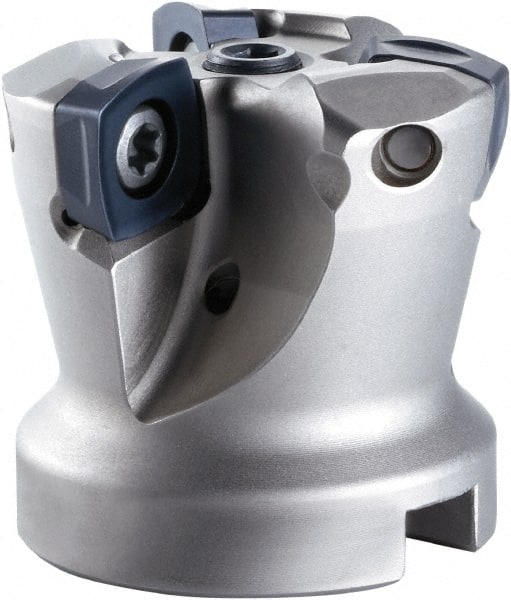

OSG - 4 Inserts, 40mm Cutter Diam, 0.04" Max Depth of Cut, Indexable High-Feed Face Mill - 16mm Arbor Hole Diam, 0.3307" Keyway Width, 1.5748" High, PHC09R040M16-4 Toolholder, SDMT09.. Inserts, Series PHOENIX-PHC
Item #: 68568237
Brand: OSG
Model #: 7800600
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.5748 |
| Cutting Diameter (mm) | 40.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0400 |
| Arbor Hole Diameter (Decimal Inch) | 0.6299 |
| Arbor Hole Diameter (mm) | 16.00 |
| Overall Height (Decimal Inch) | 1.5748 |
| Series | PHOENIX-PHC |
| Cutter Style | PHC09R040M16-4 |
| Number of Cutter Inserts | 4 |
| Insert Compatibility | SDMT09.. |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Number of Flutes | 4 |
| Maximum Body Diameter (Decimal Inch) | 1.4961 |
| Through Coolant | Yes |
| Keyway Width (Decimal Inch) | 0.3307 |
