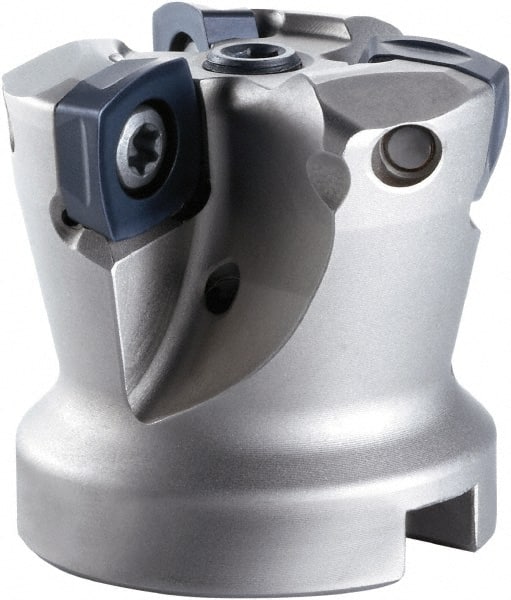

OSG - 5 Inserts, 63mm Cutter Diam, 0.06" Max Depth of Cut, Indexable High-Feed Face Mill - 22.23mm Arbor Hole Diam, 0.315" Keyway Width, 1.9685" High, PHC12R063M22.2-5 Toolholder, SXMT12.. Inserts, Series PHOENIX-PHC
Item #: 68585868
Brand: OSG
Model #: 7800615
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.4803 |
| Cutting Diameter (mm) | 63.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0600 |
| Arbor Hole Diameter (Decimal Inch) | 0.8750 |
| Arbor Hole Diameter (mm) | 22.23 |
| Overall Height (Decimal Inch) | 1.9685 |
| Series | PHOENIX-PHC |
| Cutter Style | PHC12R063M22.2-5 |
| Number of Cutter Inserts | 5 |
| Insert Compatibility | SXMT12.. |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Number of Flutes | 5 |
| Maximum Body Diameter (Decimal Inch) | 2.9921 |
| Through Coolant | Yes |
| Keyway Width (Decimal Inch) | 0.3150 |
