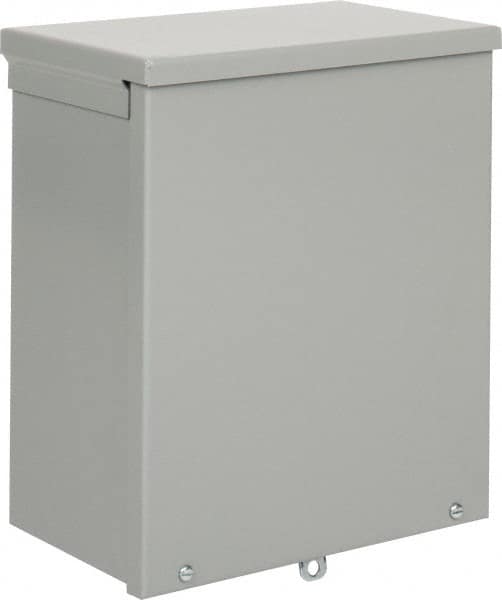

nVent Hoffman - Steel Junction Box Enclosure Screw Flat Cover - NEMA 3R, 10" Wide x 12" High x 6" Deep
Item #: 68599976
Brand: nVent Hoffman
Model #: A12R106
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Enclosure Type | Junction Box Enclosure |
| Cover Type | Screw Flat Cover |
| Enclosure Material | Steel |
| NEMA Rating | 3R |
| Overall Width (Inch) | 10 |
| Overall Width (Decimal Inch) | 10 |
| Overall Height (Inch) | 12 |
| Overall Height (Decimal Inch) | 12 |
| Overall Depth (Inch) | 6 |
| Overall Depth (Decimal Inch) | 6 |
| Cover Color | Gray |
| Finish/Coating | Polyester Powder Coat Finish |
| Material Gauge | 12; 14; 16 |
| Includes | Knockouts; Plated Steel Screws; Provision for Padlocking |
| Standards Met | ANSI 61; cUL File E27525; cUL Listed to CSA C22.2 No. 94; IEC 60529; UL File E27525; UL Listed 50; UL Listed 50E |
| Overall Width (mm) | 254 |
| Overall Height (mm) | 305 |
| Overall Depth (mm) | 152 |
