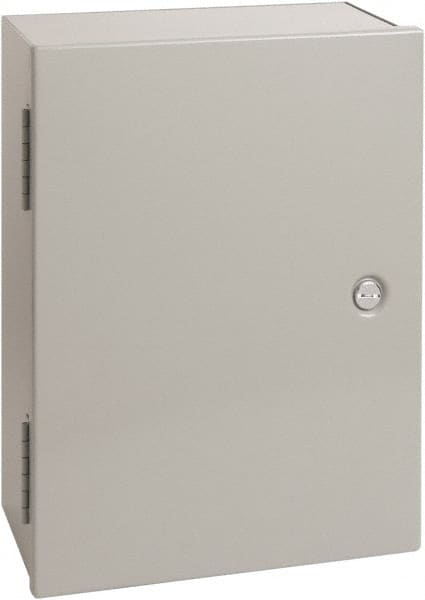

nVent Hoffman - Steel Junction Box Enclosure Hinge Flat Cover - NEMA 1, 24" Wide x 30" High x 10-5/8" Deep
Item #: 68600063
Brand: nVent Hoffman
Model #: A30N24CLP
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Enclosure Type | Junction Box Enclosure |
| Cover Type | Hinge Flat Cover |
| Enclosure Material | Steel |
| NEMA Rating | 1 |
| Overall Width (Inch) | 24 |
| Overall Width (Decimal Inch) | 24 |
| Overall Height (Inch) | 30 |
| Overall Height (Decimal Inch) | 30 |
| Overall Depth (Inch) | 10-5/8 |
| Overall Depth (Decimal Inch) | 10.6200 |
| Cover Color | Gray |
| Finish/Coating | Polyester Powder Coat Finish |
| Material Gauge | 12 |
| Includes | Butt Hinges; Collar Studs; Flush Latches; Mounting Holes |
| Standards Met | ANSI 61; CSA File 42184; cUL File E27567; cUL Listed to CSA C22.2 No. 40; IEC 60529; UL File E27567; UL Listed 50; UL Listed 50E |
| Overall Width (mm) | 610 |
| Overall Height (mm) | 762 |
| Overall Depth (mm) | 270 |
