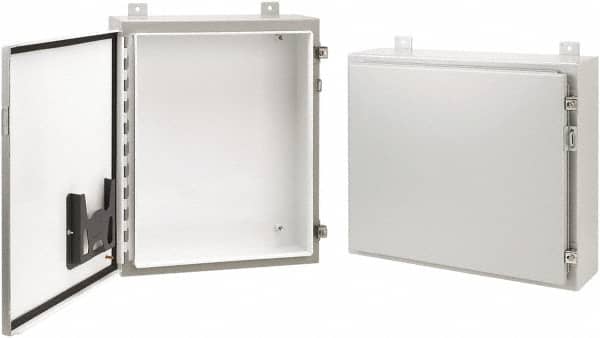

nVent Hoffman - Steel Standard Enclosure Hinge Flat Cover - NEMA 12, 13, 24" Wide x 24" High x 8" Deep
Item #: 68600220
Brand: nVent Hoffman
Model #: A242408LP
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Enclosure Type | Standard Enclosure |
| Cover Type | Hinge Flat Cover |
| Enclosure Material | Steel |
| NEMA Rating | 12; 13 |
| Overall Width (Inch) | 24 |
| Overall Width (Decimal Inch) | 24 |
| Overall Height (Inch) | 24 |
| Overall Height (Decimal Inch) | 24 |
| Overall Depth (Inch) | 8 |
| Overall Depth (Decimal Inch) | 8 |
| Cover Color | Gray |
| Material Gauge | 14; 16 |
| Includes | (2) Clamps; Bonding Provision; Collar Studs; Continuous Hinge Pins; Data Pocket; External Wall-mounting Brackets; Formed External Return Flanges; Padlock Hasp; Screw-down Door Clamps; Staple |
| Standards Met | ANSI 61; CSA File 42186; cUL Listed to CSA C22.2 No. 94; IEC 60529; UL File E61997; UL Listed 508A |
| Overall Width (mm) | 610 |
| Overall Height (mm) | 610 |
| Overall Depth (mm) | 203 |
