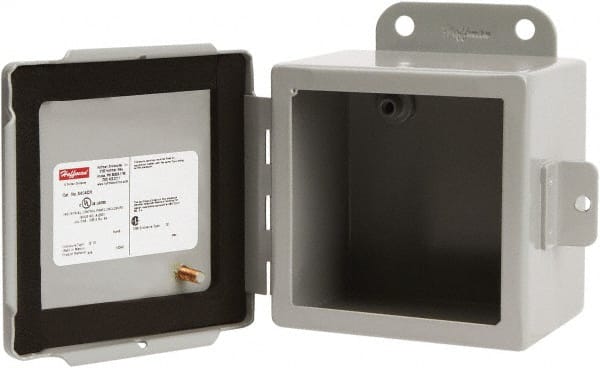

nVent Hoffman - Steel Junction Box Enclosure Hinge Flat Cover - NEMA 4, 12, 13, 10" Wide x 12" High x 5" Deep
Item #: 68600808
Brand: nVent Hoffman
Model #: A1210CHNF
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Enclosure Type | Junction Box Enclosure |
| Cover Type | Hinge Flat Cover |
| Enclosure Material | Steel |
| NEMA Rating | 4; 12; 13 |
| Overall Width (Inch) | 10 |
| Overall Width (Decimal Inch) | 10 |
| Overall Height (Inch) | 12 |
| Overall Height (Decimal Inch) | 12 |
| Overall Depth (Inch) | 5 |
| Overall Depth (Decimal Inch) | 5 |
| Cover Color | Gray |
| Finish/Coating | Polyester Powder Coat Finish |
| Material Gauge | 14 |
| Includes | Continuous Hinge; External Wall-mounting Brackets; Oil-resistant Gasket; Stainless Steel Clamps; Stainless Steel Hinge Pins |
| Standards Met | ANSI 61; CSA File 42184; cUL File E27567; cUL File E61997; cUL Listed to CSA C22.2 No. 94; IEC 60529; UL File E27567; UL File E61997; UL Listed 50; UL Listed 508A; UL Listed 50E |
| Overall Width (mm) | 254 |
| Overall Height (mm) | 305 |
| Overall Depth (mm) | 127 |
