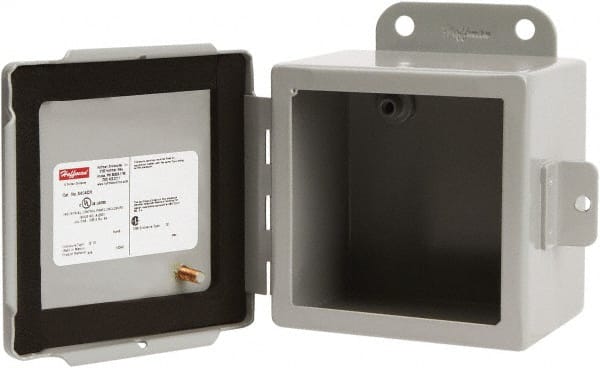

nVent Hoffman - Steel Junction Box Enclosure Hinge Flat Cover - NEMA 12, 13, 6" Wide x 8" High x 3-1/2" Deep
Item #: 68600907
Brand: nVent Hoffman
Model #: A806CH
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Enclosure Type | Junction Box Enclosure |
| Cover Type | Hinge Flat Cover |
| Enclosure Material | Steel |
| NEMA Rating | 12; 13 |
| Overall Width (Inch) | 6 |
| Overall Width (Decimal Inch) | 6 |
| Overall Height (Inch) | 8 |
| Overall Height (Decimal Inch) | 8 |
| Overall Depth (Inch) | 3-1/2 |
| Overall Depth (Decimal Inch) | 3-1/2 |
| Cover Color | Gray |
| Finish/Coating | Polyester Powder Coat Finish |
| Material Gauge | 14 |
| Includes | Continuous Hinge; External Screw Clamps; External Wall-mounting Brackets; Oil-resistant Gasket; Weld Nuts |
| Standards Met | ANSI 61; CSA File 42184; CSA File E27567; cUL File E61997; cUL Listed to CSA C22.2 No. 94; IEC 60529; UL File E27567; UL File E61997; UL Listed 50; UL Listed 508A; UL Listed 50E |
| Overall Width (mm) | 152 |
| Overall Height (mm) | 203 |
| Overall Depth (mm) | 89 |
