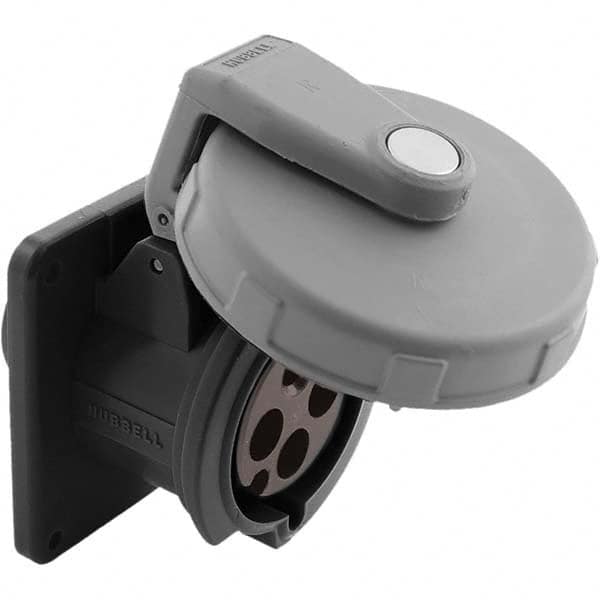

Hubbell Wiring Device-Kellems - Pin & Sleeve Receptacles Receptacle/Part Type: Receptacle Pin Configuration: 4
Item #: 62560560
Brand: Hubbell Wiring Device-Kellems
Model #: HBL4100R5W
Product Specifications
Pin & Sleeve Receptacles; Receptacle/Part Type: Receptacle ; Pin Configuration: 4 ; Number of Poles: 3 ; IEC Pin & Sleeve Style: IEC 60309-1; IEC 60309-2 ; Amperage: 100 ; Voltage: 3-Phase Delta 600 VAC
| Receptacle/Part Type | Receptacle |
| Pin Configuration | 4 |
| Number of Poles | 3 |
| IEC Pin & Sleeve Style | IEC 60309-1; IEC 60309-2 |
| Amperage | 100 |
| Voltage | 3-Phase Delta 600 VAC |
| Hub Size (Inch) | 1 |
| Resistance Features | Watertight |
| Color | Black |
| Number of Phases | 3 |
| Number of Wires | 4 |
| For Use With | IEC 60309-1; IEC 60309-2 Devices |
| Standards Met | UL Classified to IEC 60309-1 IEC 60309-2; UL Listed, CSA Certified |
| Grounding Style | Grounding |
