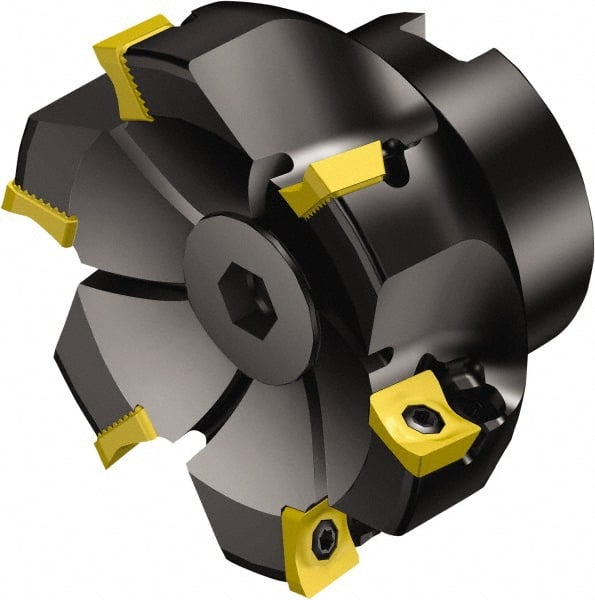

Sandvik Coromant - 6 Inserts, 3" Cut Diam, 1" Arbor Diam, 11mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 90° Lead Angle, R590-1105.. Insert Compatibility, Through Coolant, Series CoroMill Century
Item #: 68638006
Brand: Sandvik Coromant
Model #: 5740389
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 3 |
| Cutting Diameter (Decimal Inch) | 3.0000 |
| Arbor Hole Diameter (Inch) | 1 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Lead Angle | 90 |
| Insert Compatibility | R590-1105.. |
| Series | CoroMill Century |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 11.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.4331 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| Cutter Style | RA590..Rxx |
| Number of Flutes | 6 |
| Maximum RPM | 28400 |
| ISO Number | RA590-076R25A-11M |
| Toolholder Material | Steel |
