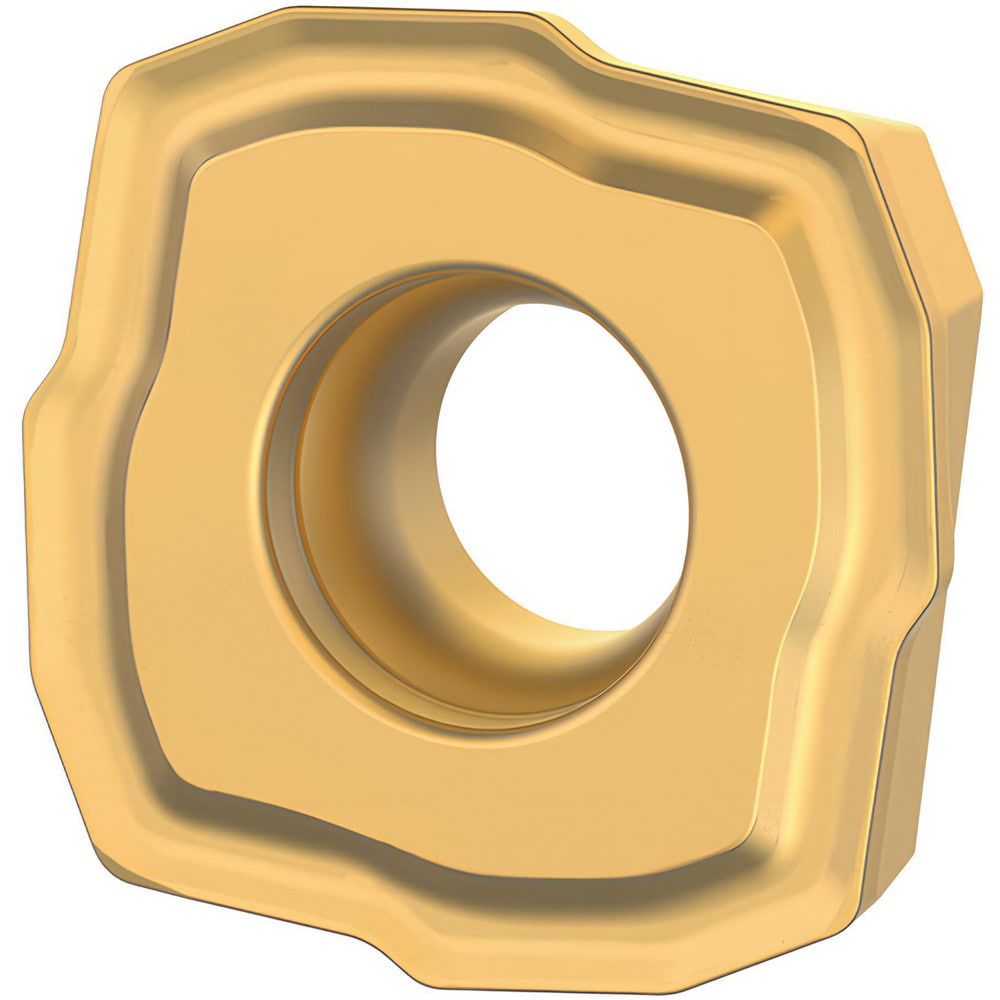

Indexable Drill Inserts; Insert Style: DFPR; Insert Material: Carbide; Manufacturer Grade: KC7140; Thickness (mm): 3.6
Item #: 02822237
Brand: Kennametal
Model #: 7034270
Product Specifications
| Insert Style | DFPR |
| Insert Material | Carbide |
| Manufacturer Grade | KC7140 |
| Thickness (mm) | 3.6 |
| Inscribed Circle (Decimal Inch) | 0.4690 |
| Inscribed Circle (mm) | 11.90 |
| Corner Radius (Decimal Inch) | 0.0200 |
| Corner Radius (mm) | 0.5 |
| Chipbreaker | PK |
| Series | Drill Fix |
| Shape | Proprietary |
| Relief Angle | 8 |
| Ansi Code | DFPR120405PKI |
| Iso Code | DFPR120405PKI |
| Compatible Drill Style | DFPR |
| Insert Size | 12 |
| Width (mm - 2 Decimals) | 9.83 |
| Length (Mm) | 9.83 |
| Width (Decimal Inch - 4 Decimals) | 0.387 |
| Length (Decimal Inch - 4 Decimals) | 0.387 |
| Included Angle Degree | 8 |
| Coating/Finish | TiN |
| Insert Size Code | 12 |
| UNSPSC Code | 23242105 |
