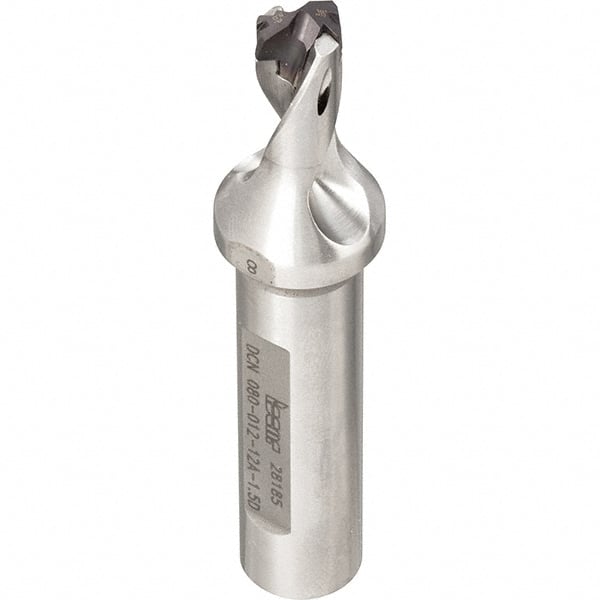

Iscar - 0.335" to 0.35" Diam, 1.5xD, 1/2" Max Depth, 1/2" Shank Diam, 2.87" OAL, Replaceable-Tip Drill - FCP, HCP-IQ, ICK, ICK-2M, ICM, ICP, iCP-2M Insert, 68675453 Toolholder, Series SumoCham
Item #: 68675453
Brand: Iscar
Model #: 3203334
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (Decimal Inch) | 0.3350 |
| Maximum Drill Diameter (Decimal Inch) | 0.3500 |
| Drill Depth by Diameter Ratio | 1.5xD |
| Maximum Drill Depth (Decimal Inch) | 0.5000 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Insert Style | FCP; HCP-IQ; ICK; ICK-2M; ICM; ICP; iCP-2M |
| Toolholder Style | DCN R |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Body Length (Decimal Inch) | 1.1000 |
| Overall Length (Decimal Inch) | 2.8700 |
| Shank Length (Decimal Inch) | 1.7700 |
