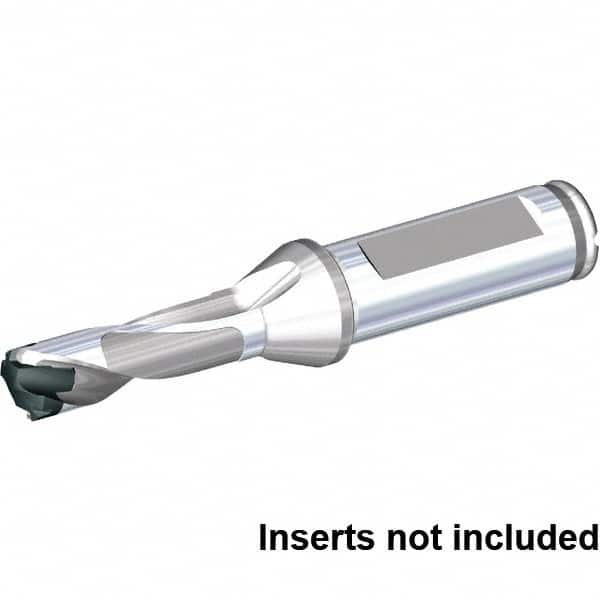

Kennametal - Series KenTIP, Head Connection S, 8xD, 5/8" Shank Diam, Drill Body - 146.05mm Drill Body Length to Flange, KTIP Toolholder, 14.67mm Nose Diam, 194.05mm OAL, 146.05mm Drill Body Length, 140.55mm Flute Length, Through Coolant
Item #: 68690908
Brand: Kennametal
Model #: 5307873
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | KenTIP |
| Head Connection Size | S |
| Drill Depth by Diameter Ratio | 8xD |
| Shank Diameter (mm) | 15.88 |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Drill Body Length to Flange (mm) | 146.05 |
| Drill Body Length to Flange (Decimal Inch) | 5.7500 |
| Toolholder Style | KTIP |
| Nose Diameter (mm) | 14.67 |
| Nose Diameter (Decimal Inch) | 0.5774 |
| Overall Length (mm) | 194.05 |
| Overall Length (Decimal Inch) | 7.6398 |
| Gage Length (mm) | 146.05 |
| Gage Length (Decimal Inch) | 5.7500 |
| Flute Length (mm) | 140.55 |
| Flute Length (Decimal Inch) | 5.5335 |
| Shank Length (mm) | 48.00 |
| Shank Length (Decimal Inch) | 1.8898 |
| Through Coolant | Through Coolant |
| Number of Shank Flats | 1 |
